TPS767D301PWP
1-A, 10-V, dual-channel low-dropout voltage regulator with power good & enable
Availability: In Stock
Package Type: HTSSOP-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS767D301PWP by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

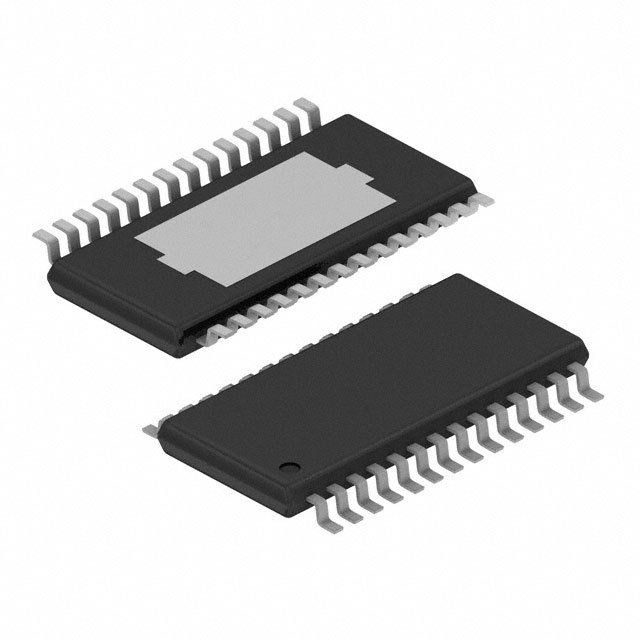

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS767D301PWP
| Part Name | TPS767D301PWP |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Dimensions | 9.7 x 4.4 x 1.15 (mm) |
| Regulator Type | Low Dropout Voltage |
| Width | 4.4 (mm) |
| Accuracy | ±2 (%) |
| Number Of Outputs | 2 |
| Load Regulation | 3 mV |
| Output Type | Adjustable, Fixed |
| Package Type | HTSSOP |
| Maximum Operating Temperature | +125 °C |
| Quiescent Current (A) | 0.085 (mA) |
| Line Regulation | 0.01 %/V |
| Length | 9.7 (mm) |
| Pin Count | 28 |
| Mounting Type | Surface Mount |
| Height | 1.15 (mm) |
| Output Voltage (V) | 1.5 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Power Rating | 5.07 (W) |
| Maximum Output Current (A) | 1 (A) |
| Maximum Input Voltage (V) | 10 V |
| Minimum Input Voltage (V) | 2.7 V |
Inventory for the TPS767D301PWP by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,771
|
|
Visit Site | |
|
★ Featured
|
280,000
|
250 x $1.22
|
Visit Site | |
| Arrow Electronics |
6
|
|
Visit Site | |
| Texas Instruments |
92,601
|
|
Visit Site | |
| Verical |
6
|
2 x $5.48
|
Visit Site |
No issues have been reported for the TPS767D301PWP
