TPS79533DCQ
500-mA, low-dropout voltage regulator with enable
Availability: In Stock
Package Type: SOT-223-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS79533DCQ by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

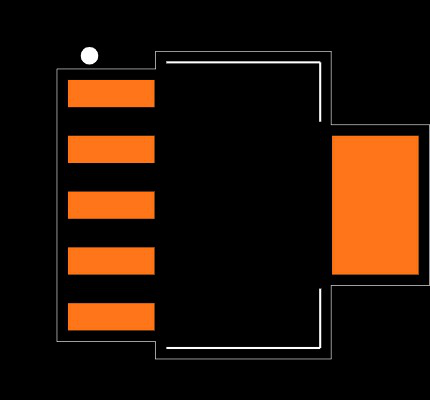

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS79533DCQ
| Part Name | TPS79533DCQ |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 3 mV |
| Dimensions | 6.5 x 3.5 x 1.6 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 500 (mA) |
| Accuracy | ±2 (%) |
| Line Regulation | 0.05 %/V |
| Regulator Type | Low Dropout Voltage |
| Output Type | Fixed |
| Height | 1.6 (mm) |
| Width | 3.5 (mm) |
| Length | 6.5 (mm) |
| Output Voltage (V) | 3.3 V |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 2.7 V |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 5+Tab |
| Maximum Input Voltage (V) | 5.5 V |
| Quiescent Current (A) | 0.265 (mA) |
Inventory for the TPS79533DCQ by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Texas Instruments |
39,785
|
|
Visit Site |
No issues have been reported for the TPS79533DCQ
If you experienced any issues with the symbol or footprint, please report it.
