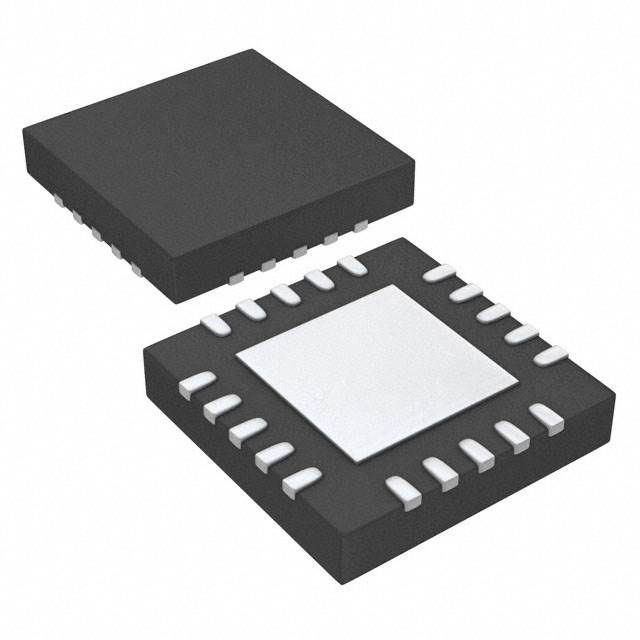

TPS7A4700RGWT
1-A, 36-V, low-noise, high-PSRR, low-dropout voltage regulator with enable
Availability: In Stock
Package Type: VQFN-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS7A4700RGWT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

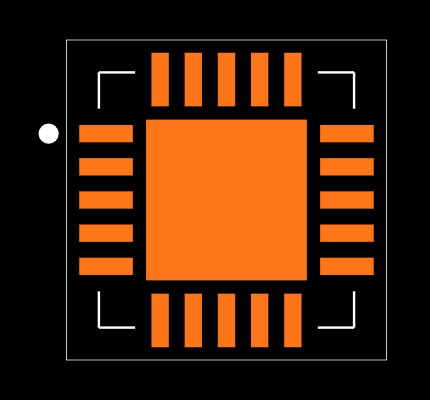

Footprint
No web preview
This Footprint is Available for

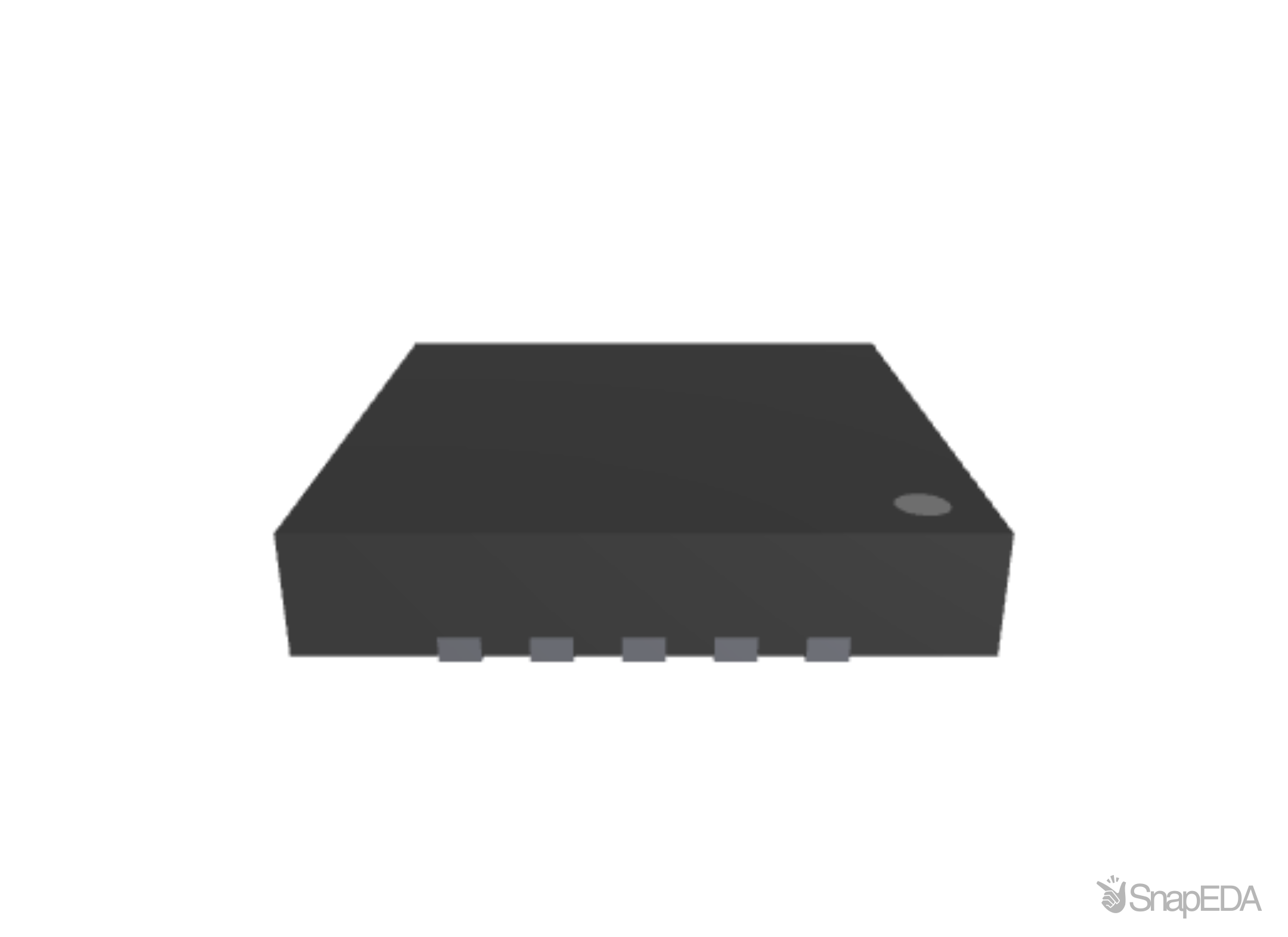

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS7A4700RGWT
| Part Name | TPS7A4700RGWT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 0.3 %/V |
| Dimensions | 5.15 x 5.15 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Reference Voltage (V) | 1.4 (V) |
| Accuracy | ±2.5 (%) |
| Maximum Output Current (A) | 1 (A) |
| Regulator Type | Low Dropout Voltage |
| Output Type | Adjustable |
| Height | 0.95 (mm) |
| Width | 5.15 (mm) |
| Length | 5.15 (mm) |
| Output Voltage (V) | 1.4 → 20.5 V |
| Package Type | VQFN |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 3 V |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 20 |
| Maximum Input Voltage (V) | 36 V |
| Line Regulation | 0.092 %/V |
Inventory for the TPS7A4700RGWT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Texas Instruments |
12,146
|
|
Visit Site |
No issues have been reported for the TPS7A4700RGWT
