TPSA225K016R1800

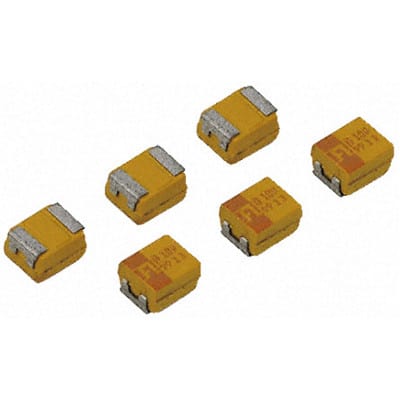

2.2uF SMD Solid MnO2 Tantalum Electrolytic Capacitor, 16 V dc +/-10%, TPS Series | AVX TPSA225K016R1800
Availability: In Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPSA225K016R1800 by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPSA225K016R1800
| Part Name | TPSA225K016R1800 |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Surge Voltage (V) | 13 V @ 125 °C |
| Dissipation Factor | 6 (%) |
| Capacitance | 2.2 (µF) |
| Tolerance | ±10 (%) |
| Dimensions | 3.2 x 1.6 x 1.6 (mm) |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMT |
| Tolerance Plus | +10 (%) |
| Length | 3.2 (mm) |
| Equivalent Series Resistance | 1.8 (Ω) |
| Leakage Current (A) | 0.5 μA |
| Lead Pitch | 1.1 (mm) |
| Polarised | Polar |
| Mounting Type | Surface Mount |
| Package Case | 3216-18 |
| Series | TPS |
| Depth | 1.6 (mm) |
| Height | 1.6 (mm) |
| Tolerance Minus | -10 (%) |
| Voltage (V) | 16 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Technology | Electrolytic |
Inventory for the TPSA225K016R1800 by AVX from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
10,000
|
|
Visit Site | |
| Farnell UK |
1,210
|
|
Visit Site | |
| Newark |
1,210
|
|
Visit Site | |
| RS UK |
2,175
|
25 x $0.35
|
Visit Site | |
| TME |
2,353
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| element14 Singapore |
1,210
|
|
Visit Site |
No issues have been reported for the TPSA225K016R1800
