TPSB226K016R0600
Capacitor,Tantalum,Cap 22 uF,Tol 10%,Vol-Rtg 16 VDC,SMT,3528,ESR 600 mOhms,CT | AVX TPSB226K016R0600
Availability: In Stock
Package Type: 1210
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPSB226K016R0600 by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

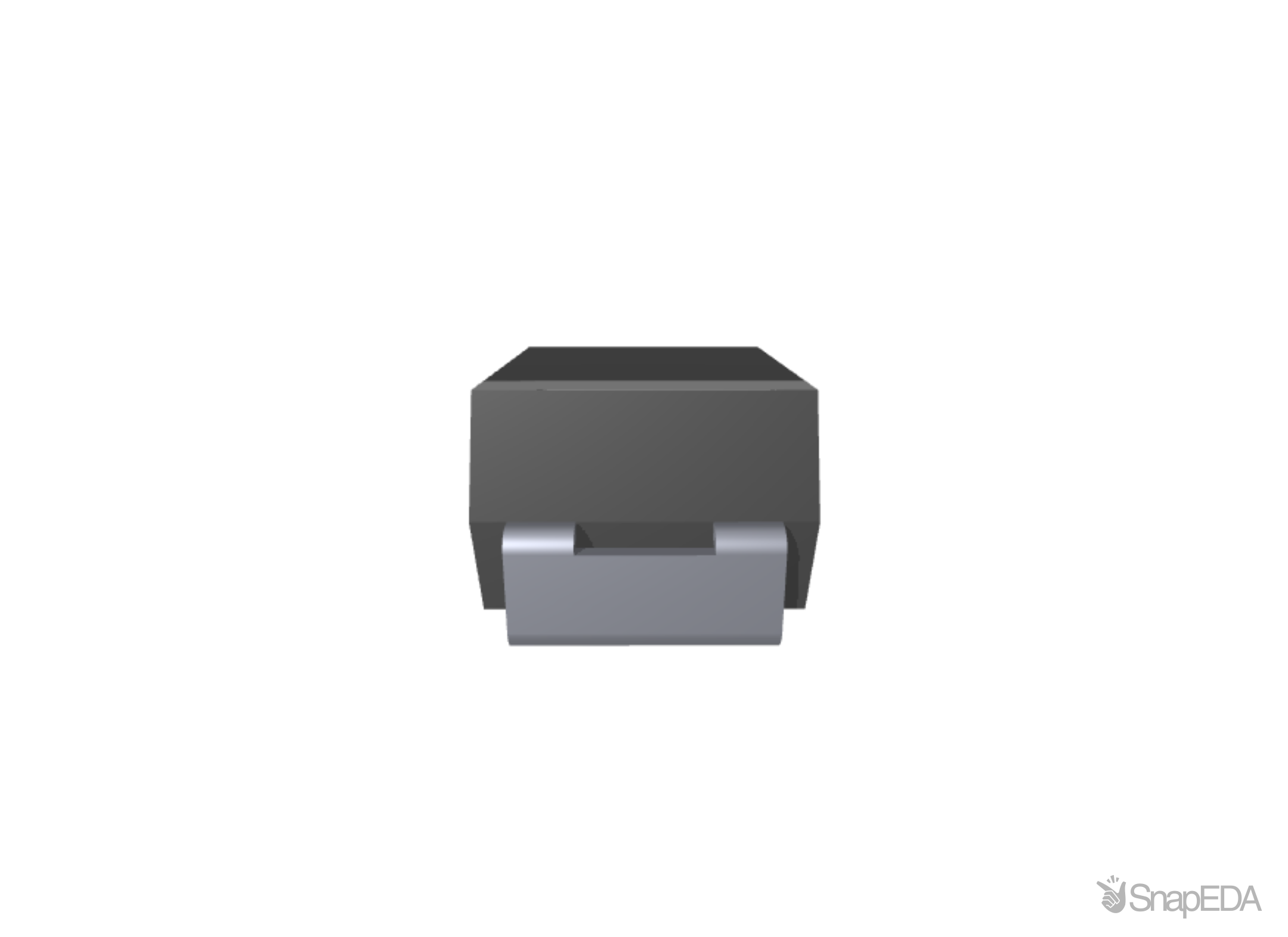

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPSB226K016R0600
| Part Name | TPSB226K016R0600 |
| Manufacturer | AVX |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Surge Voltage (V) | 13 V @ 125 °C |
| Dissipation Factor | 6 (%) |
| Capacitance | 22 (µF) |
| Tolerance | ±10 (%) |
| Dimensions | 3.5 x 2.8 x 1.9 (mm) |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMT |
| Tolerance Plus | +10 (%) |
| Depth | 2.8 (mm) |
| Equivalent Series Resistance | 600 (mΩ) |
| Leakage Current (A) | 3.5 μA |
| Lead Pitch | 1.4 (mm) |
| Polarised | Polar |
| Mounting Type | Surface Mount |
| Package Case | 3528-21 |
| Series | TPS |
| Length | 3.5 (mm) |
| Height | 1.9 (mm) |
| Tolerance Minus | -10 (%) |
| Voltage (V) | 16 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Technology | Electrolytic |
Inventory for the TPSB226K016R0600 by AVX from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,611
|
|
Visit Site | |
|
★ Featured
|
5,895
|
|
Visit Site | |
|
★ Featured
|
169,872
|
1,595 x $0.22
|
Visit Site | |
| Arrow Electronics |
26
|
26 x $0.16
|
Visit Site | |
| RS Americas |
2,000
|
2,000 x $0.60
|
Visit Site |
No issues have been reported for the TPSB226K016R0600
