TPSD156M035R0300
Capacitor,Tantalum,Cap 15 uF,Tol 20%,Vol-Rtg 35 VDC,SMT,7343,Low ESR,Tape & Reel | AVX TPSD156M035R0300
Availability: In Stock
Package Type: 2917
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPSD156M035R0300 by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

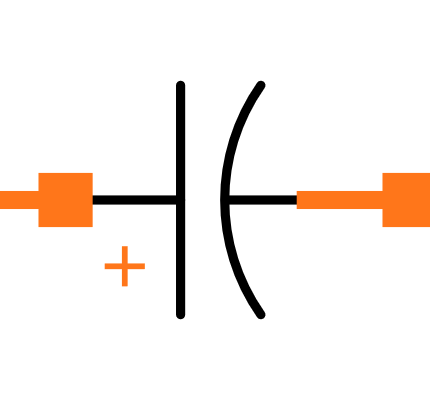

Symbol
No web preview
This Symbol is Available for

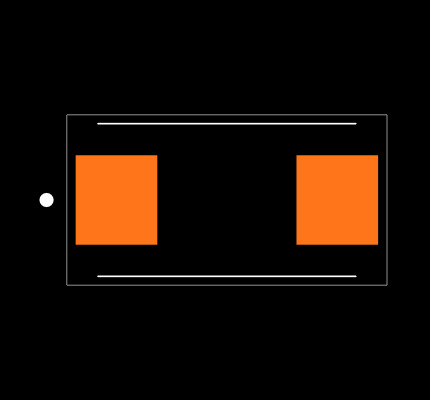

Footprint
No web preview
This Footprint is Available for

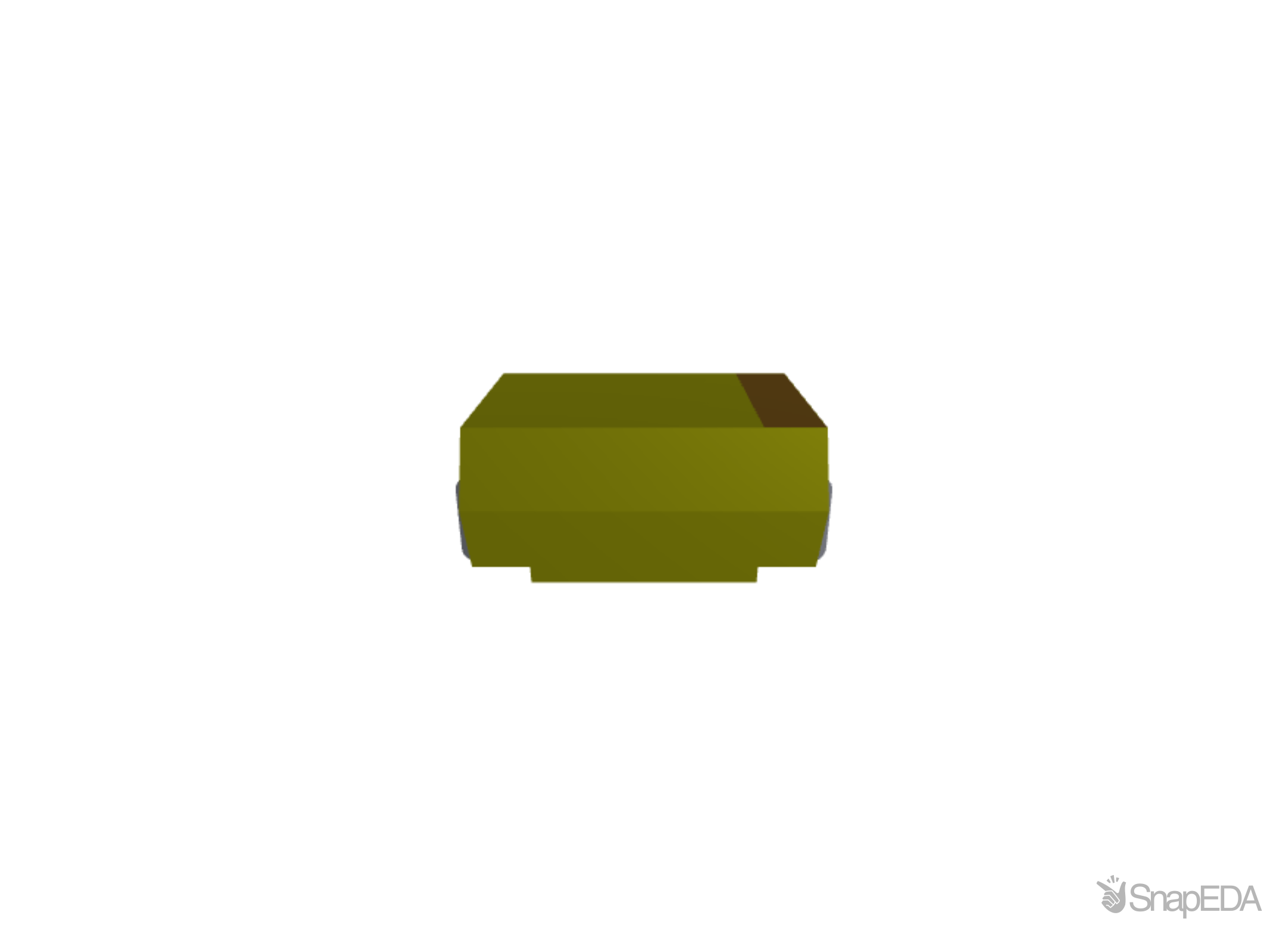

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPSD156M035R0300
| Part Name | TPSD156M035R0300 |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 7.3 x 4.3 x 2.9 (mm) |
| Equivalent Series Resistance | 300 (mΩ) |
| Capacitance | 15 (µF) |
| Tolerance | ±20 (%) |
| Surge Voltage (V) | 28 V @ ≤+125 °C, 46 V @ ≤+85 °C |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMD |
| Tolerance Plus | +20 (%) |
| Depth | 4.3 (mm) |
| Leakage Current (A) | 5.3 μA |
| Lead Pitch | 4.4 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 7343-31 |
| Series | TPS |
| Length | 7.3 (mm) |
| Height | 2.9 (mm) |
| Tolerance Minus | -20 (%) |
| Voltage (V) | 35 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Technology | Electrolytic |
Inventory for the TPSD156M035R0300 by AVX from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,957
|
|
Visit Site | |
| Verical |
187
|
157 x $1.06
|
Visit Site |
No issues have been reported for the TPSD156M035R0300
If you experienced any issues with the symbol or footprint, please report it.
