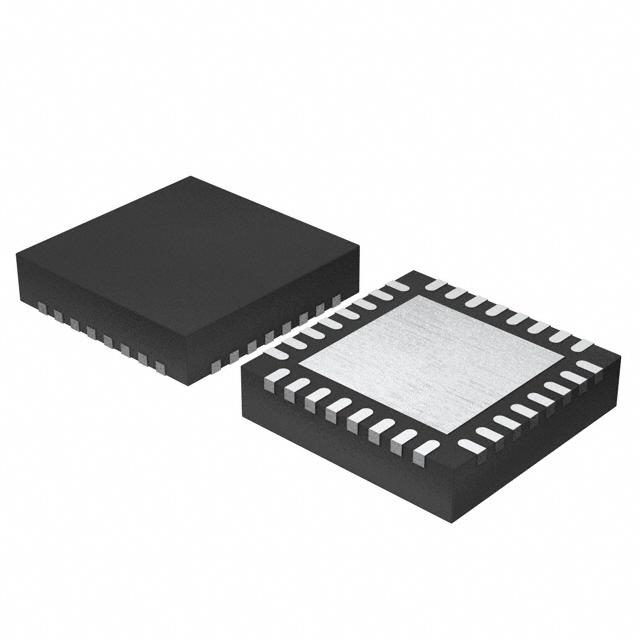

TRF3765IRHBT
300M-4800MHz Low Noise Integer-N/Fractional-N PLL with Integrated VCO and up to 8 Outputs
Availability: In Stock
Package Type: VQFN-32-32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TRF3765IRHBT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

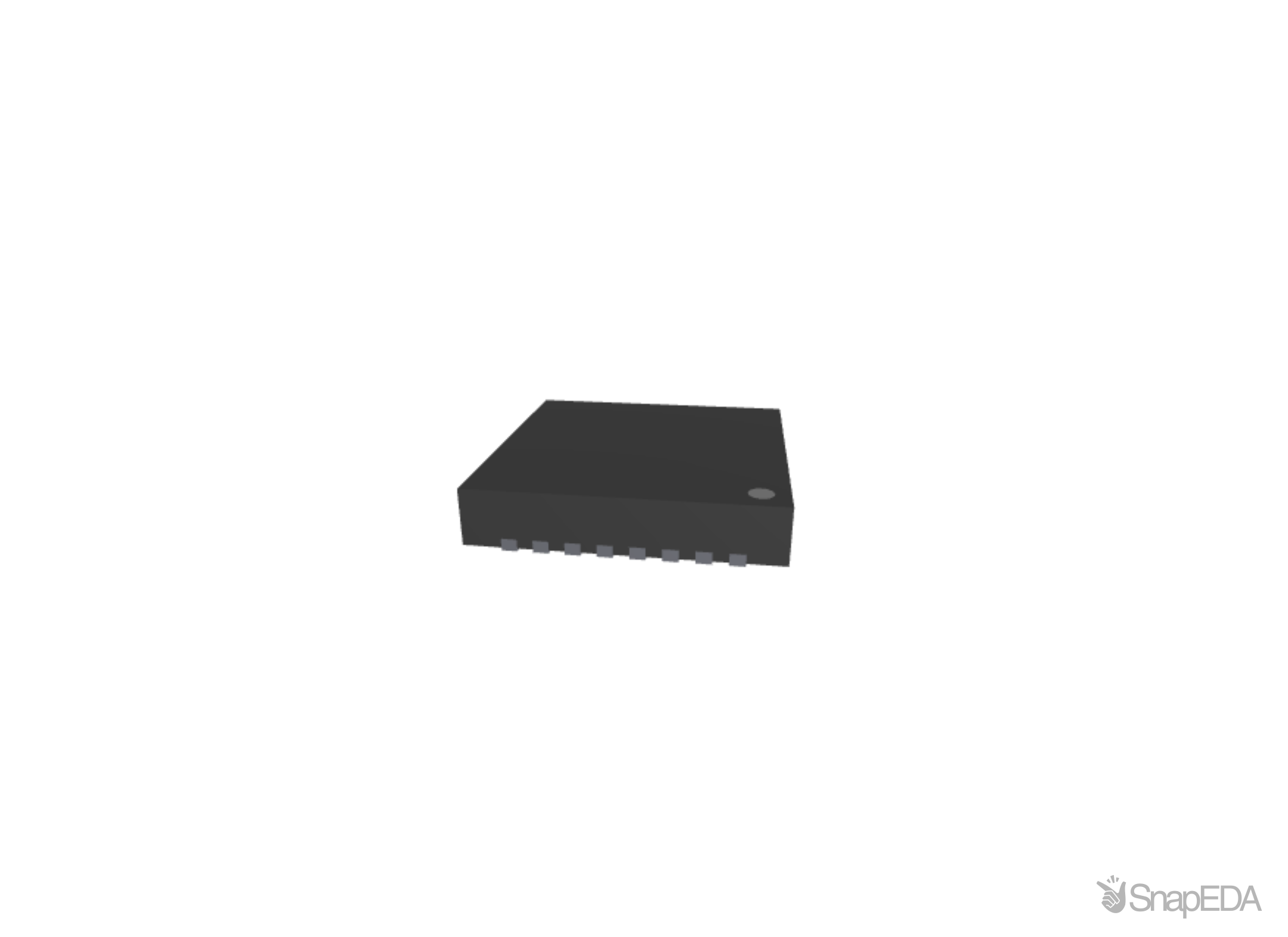

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TRF3765IRHBT
| Part Name | TRF3765IRHBT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 5.15 x 5.15 x 0.95 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Maximum Output Frequency | 4800 (MHz) |
| Minimum Output Frequency | 300 (MHz) |
| Minimum Operating Supply Voltage (V) | 3 V |
| Length | 5.15 (mm) |
| Height | 0.95 (mm) |
| Width | 5.15 (mm) |
| Maximum Supply Current (A) | 190 mA |
| Maximum Input Frequency | 350 (MHz) |
| Package Type | VQFN |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 32 |
