TRI 3-0513
3 Watt DC/DC converter, industrial, 2:1 input, regulated, reinforced high isolation (5000 VAC), high working voltage (1000 VAC), encapsulated, DIP-24
Availability: Out of Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TRI 3-0513 by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

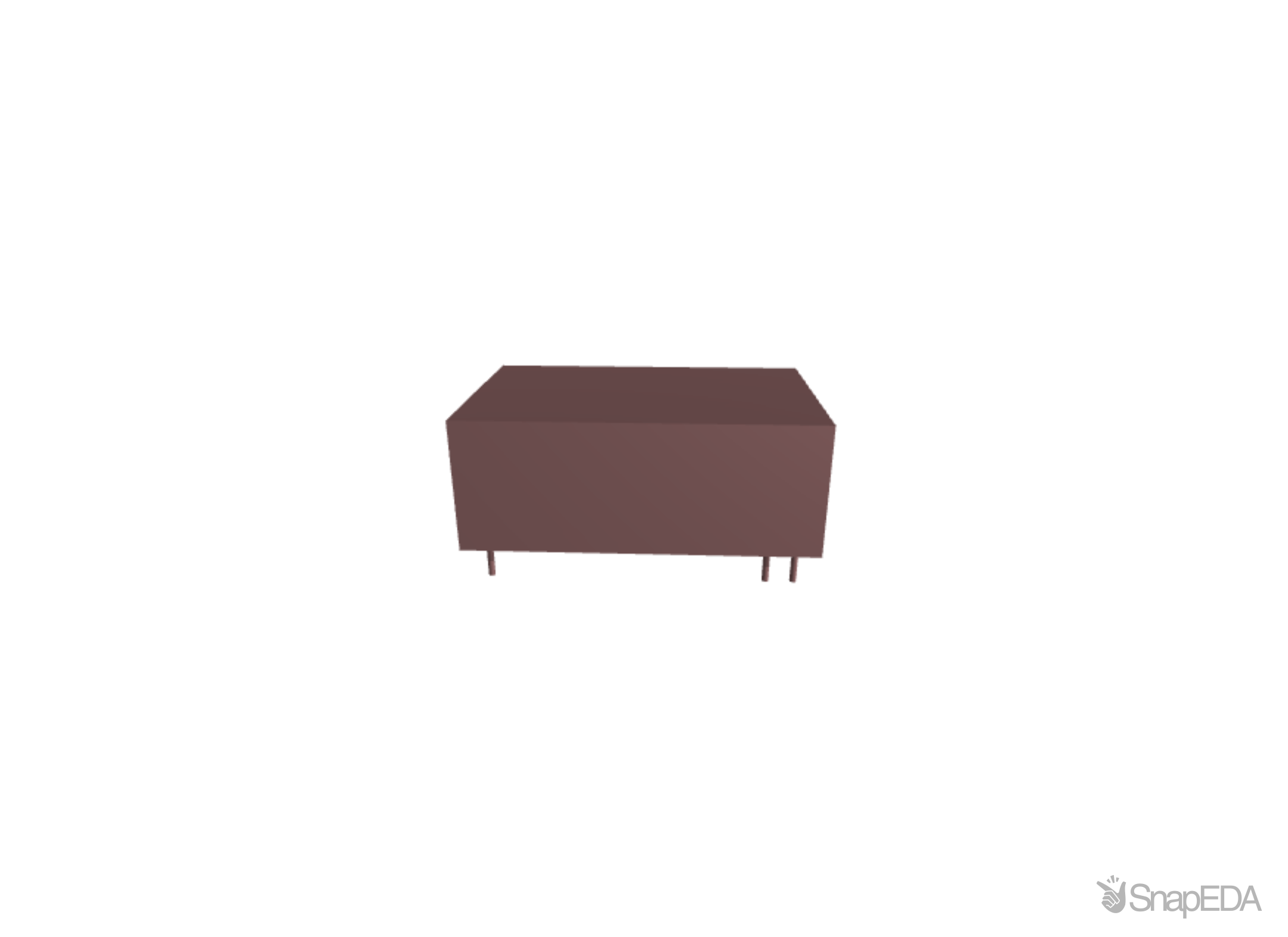

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TRI 3-0513
| Part Name | TRI 3-0513 |
| Manufacturer | Traco Power |
| Category | Power Products |
| Number of Outputs | single |
| Adjustable output? | No |
| Product Length | 31.8 |
| Vin | 4.5-9 |
| Iout | 235 |
| Warranty Period | 3-year |
| Temperature Range Max. | 96 |
| Temperature Range Min. | -40 |
| Product Width | 20.3 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| GTIN | 7613441050591 |
| Footprint Type | DIP24 |
| RoHS | Yes |
| ESD Sensitive | No |
| Isolation Voltage Input and Output (V) | 5000 VAC |
| Power | 3.5 |
| Mounting Type | PCB Mount |
| Series Name | TRI 3 |
| Insulation System | Reinforced Insulation |
| Lifecycle Status | Active |
| REACH | Yes |
| Weight | 15.5 |
| high_runner | TRUE |
| Vout | 15 |
| Product Height | 12.0 |
| Efficiency | 84.0 |
| Housing Type | Plastic Case |
| Family | DC/DC Converter isolated, regulated |
| Remote on-off function? | No |
| Connection Type | THD (Through-Hole Device) |
