TRME337K010R0035

Name: TRME337K010R0035
Brand: AVX

Capacitor;Tantalum;Cap 330 uF;Tol 10%;SMT;Vol-Rtg 10 VDC;ESR 35 mOhms | AVX TRME337K010R0035

Availability: Out of Stock

Package Type: 2917

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the TRME337K010R0035 by AVX and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

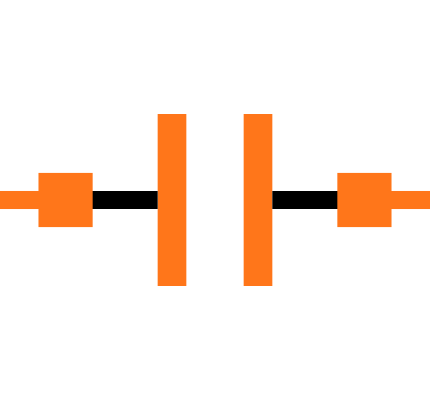

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

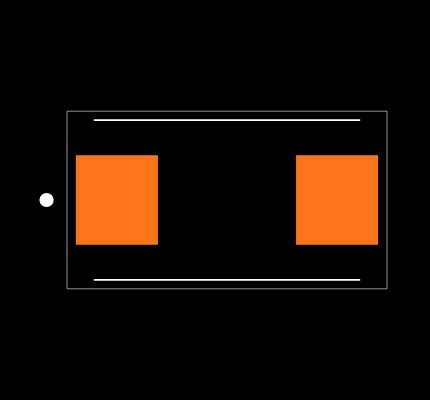

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

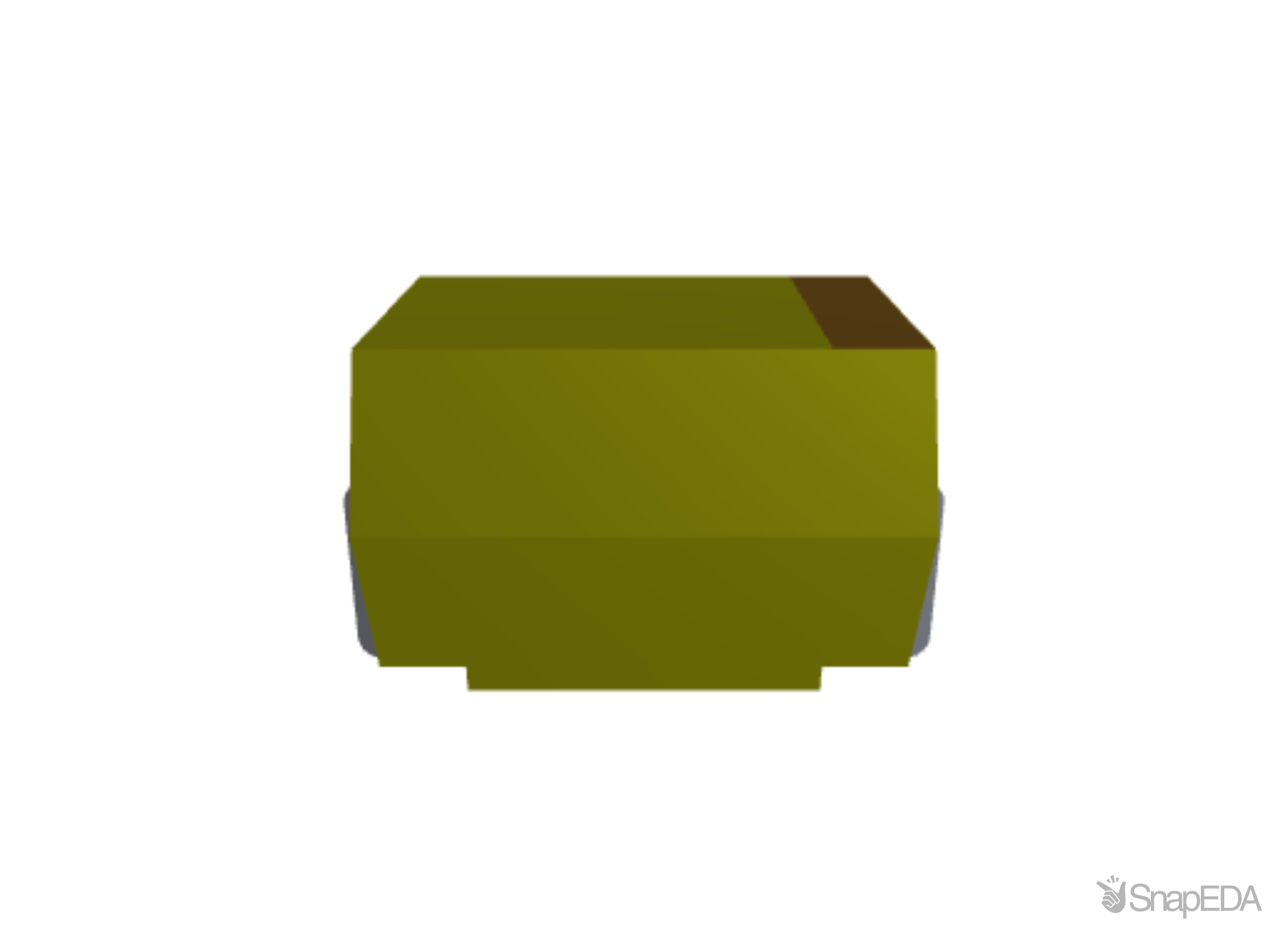

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the TRME337K010R0035

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the TRME337K010R0035

Part Name	TRME337K010R0035
Manufacturer	AVX
Category	Electronic Components
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Surge Voltage (V)	13 V @ +85 °C, 8 V @ +125 °C
Dissipation Factor	6 (%)
Capacitance	330 (µF)
Tolerance	±10 (%)
Dimensions	7.3 x 4.3 x 4.1 (mm)
Dielectric Material Family	Tantalum
Maximum Operating Temperature	+125 (°C)
Terminal Type	SMD
Tolerance Plus	+10 (%)
Length	7.3 (mm)
Equivalent Series Resistance	35 (mΩ)
Leakage Current (A)	24.8 μA
Lead Pitch	4.4 (mm)
Mounting Type	Surface Mount
Package Case	7343-43
Series	TRM
Depth	4.3 (mm)
Height	4.1 (mm)
Tolerance Minus	-10 (%)
Voltage (V)	10 (V dc)
Minimum Operating Temperature	-55 (°C)
Electrolyte Type	Solid
Technology	Electrolytic

We could not find inventory or pricing across major distributors for the TRME337K010R0035 by AVX.
