TRN 1-1222
1 Watt DC/DC converter, industrial, 2:1 input, regulated, compact design, 1600 VDC isolation, encapsulated, SIP package
Availability: Out of Stock
Package Type: SIP-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TRN 1-1222 by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

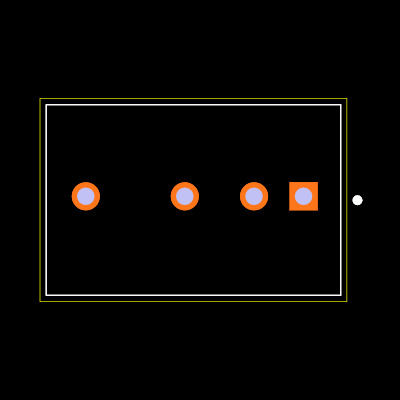

Footprint
No web preview
This Footprint is Available for

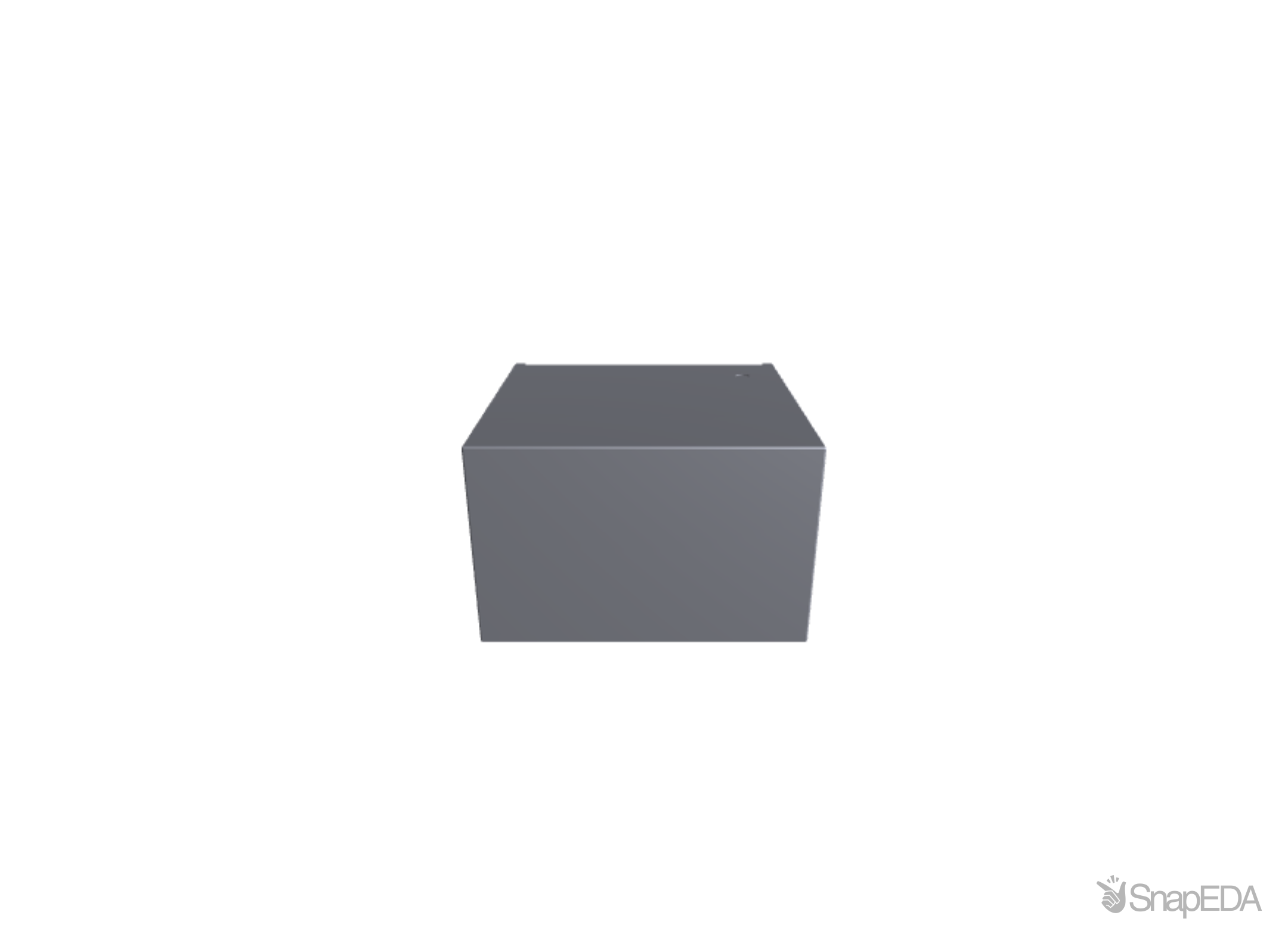

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TRN 1-1222
| Part Name | TRN 1-1222 |
| Manufacturer | Traco Power |
| Category | Power Products |
| Product Length | 7.7 |
| Product Width | 11.0 |
| GTIN | 7613441059365 |
| ESD Sensitive | No |
| Isolation Voltage Input and Output (V) | 1600 VDC |
| Power | 1.0 |
| Insulation System | Functional Insulation |
| REACH | Yes |
| Product Height | 11.9 |
| Efficiency | 83.0 |
| Compatible Accessories | TCK-146 |
| Housing Type | Plastic Case |
| Family | DC/DC Converter isolated, regulated |
| Remote on-off function? | No |
| Number of Outputs | dual |
| Adjustable output? | No |
| Iout | 45/45 |
| Warranty Period | 3-year |
| Temperature Range Max. | 90 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | SIP5 |
| RoHS | Yes |
| Vout | ±12 |
| Mounting Type | PCB Mount |
| Series Name | TRN 1 |
| Lifecycle Status | Active |
| Vin | 9-18 |
| high_runner | TRUE |
| Weight | 2.1 |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
