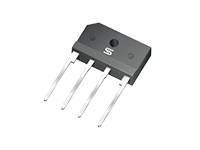

TS10K80
10A, 800V, Standard Bridge, TS4K
Availability: In Stock
Package Type: TS4K
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TS10K80 by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

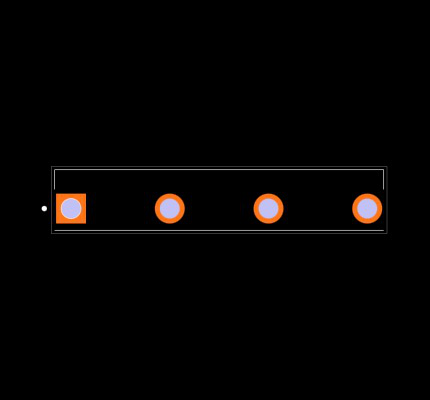

Footprint
No web preview
This Footprint is Available for

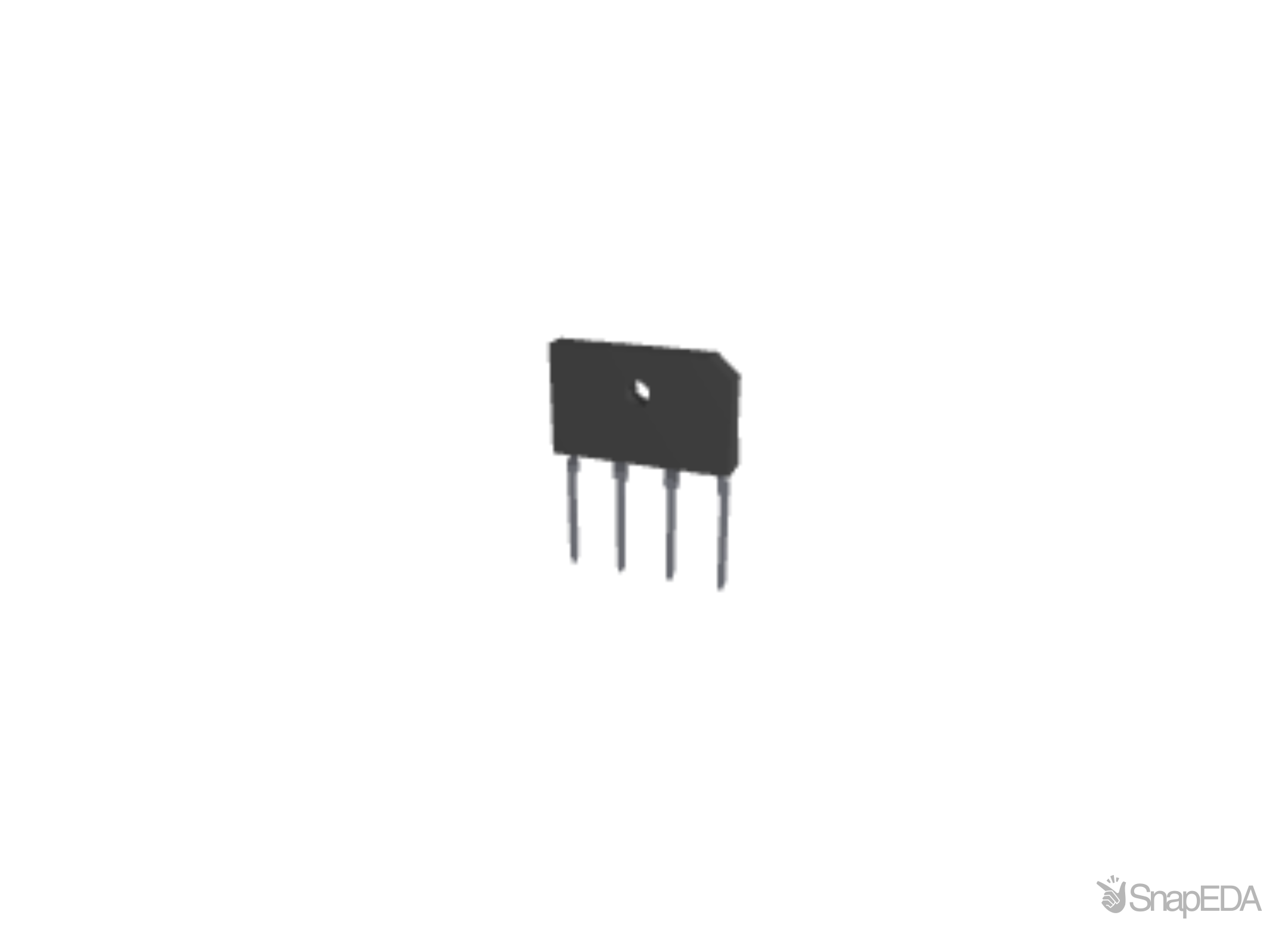

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TS10K80
| Part Name | TS10K80 |
| Manufacturer | Taiwan Semiconductor |
| Family | STD GPP |
| Maximum DC Reverse Current (A) | 1e-05 |
| Package | TS4K |
| Case Package | TS4K |
| Peak Forward Surge Current (A) | 150.0 |
| Maximum Operating Junction Temperature | 150.0 |
| Maximum Instantaneous Forward Voltage (V) | 1.1 |
| AEC-Q compliant | True |
| Maximum Average Forward Rectified Current (A) | 10.0 |
| RoHS | True |
| Maximum Repetitive Peak Reverse Voltage (V) | 800.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TS10K80 by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,785
|
|
Visit Site | |
|
★ Featured
|
797
|
620 x $0.49
|
Visit Site |
No issues have been reported for the TS10K80
