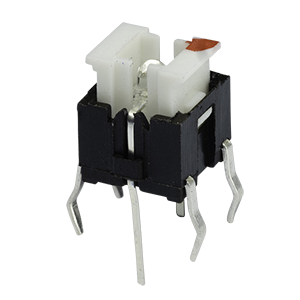

TS27-68-24-G-260-D
SnapVerified
6.8 x 6 mm, 2.5 mm Actuator Height, 260 gf, Through Hole, SPST, Green Illuminiated, Tactile Switch
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TS27-68-24-G-260-D by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TS27-68-24-G-260-D
| Part Name | TS27-68-24-G-260-D |
| Manufacturer | Same Sky |
| Rated Voltage (Vdc) (V) | 12 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/ts27-68-24-g-260-d |
| Current Rating (mA) (A) | 50 |
| Width (mm) | 6 |
| Dimensions LxWxH (mm) | 6.8 x 6 x 7.2 |
| Actuator Height (mm) | 2.5 |
| Actuator Travel (mm) | 0.25 |
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
| Withstanding Voltage (Vac for 1 min) (V) | 250 |
| Lifecycles | 100000 |
| Length (mm) | 6.8 |
| Circuit | SPST |
| Termination | PC Pin |
| Operating Temp. (°C) | -30 ~ 80 |
| RoHS | True |
| Height (mm) | 7.2 |
| Illumination Color | Green |
| Orientation | Vertical |
| Operating Force (gf) | 260 ± 50 |
| Mounting Style | Through Hole |
| Contact Resistance (mΩ) | 100 |
| Illumination | Yes |
| Dimensions LxWxH (in) | 0.267 x 0.236 x 0.283 |
| Switch Type | Tactile |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TS27-68-24-G-260-D by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,739
|
|
Visit Site | |
| Farnell UK |
|
3,000 x $0.85
|
Visit Site | |
| TME |
|
3,000 x $0.53
|
Visit Site |
No issues have been reported for the TS27-68-24-G-260-D
If you experienced any issues with the symbol or footprint, please report it.
