TS4148 RXG
1206 (Ceramics) 75V 0.15A Switching Diode & Array
Availability: In Stock
Package Type: 1206-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TS4148 RXG by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

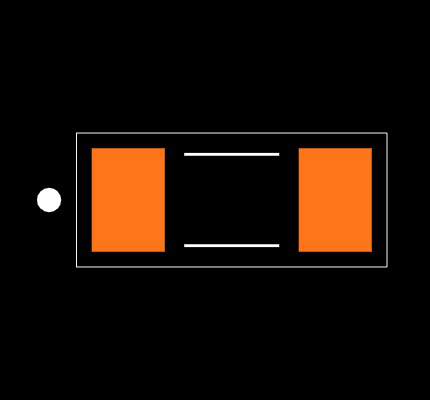

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TS4148 RXG
| Part Name | TS4148 RXG |
| Manufacturer | Taiwan Semiconductor |
| Maximum DC Reverse Current (A) | {'is_url': False, 'value': 0.0} |
| Family | Switching Diode & Array |
| Reverse Recovery Time | 4e-09 |
| Instantaneous Forward Voltage at IF (V) | 0.1 |
| Maximum Repetitive Peak Reverse Voltage (V) | 75.0 |
| Junction Capacitance Typ at VR at f in MHz | 1.0 |
| Pulse Width | 0.0083 |
| Junction Capacitance Typ at VR at f in pF | 4.0 |
| Reverse Voltage (V) | 75.0 |
| Peak Forward Surge Current (A) | 2.0 |
| Maximum Operating Junction Temperature | 150.0 |
| Maximum Instantaneous Forward Voltage (V) | 1.0 |
| Power Dissipation | 0.5 |
| Case Package | 1206 (Ceramics) |
| Reverse Current at VR (A) | 20.0 |
| AEC-Q compliant | {'is_url': False, 'value': False} |
| Maximum Average Forward Rectified Current (A) | 0.15 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 0.95 x 3.4 x 1.7 (mm) |
| Mounting Type | Surface Mount |
| Width | 1.7 (mm) |
| Diode Configuration | Single |
| Maximum Forward Voltage Drop (V) | 1 (V) |
| Height | 0.95 (mm) |
| Diode Technology | Silicon Junction |
| Length | 3.4 (mm) |
| Package Type | 1206 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +200 °C |
| Pin Count | 2 |
Inventory for the TS4148 RXG by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
|
1 x $0.08
|
Visit Site | |
| RS UK |
21,250
|
5,000 x $0.03
|
Visit Site | |
| element14 Singapore |
|
1 x $0.08
|
Visit Site |
No issues have been reported for the TS4148 RXG
