TS63Y503KT20
TRIMMER, POT, 50K, 15TURN, SMD; Track Resistance:50kohm; No. of Turns:13Turns; Potentiometer Mounting:Surface Mount Device; Product Range:TS63Y Series; Power Rating:250mW; Resistance Tolerance:± 10%; Temperature Coefficient:± 100ppm/°C; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; Adjustment Type:Screwdriver Slot; Contact Resistance Variation +:2%; End Resistance:1ohm; External Depth:6.85mm; External Length / Height:6.85mm; External Width:5mm; IP / NEMA Rating:IP67; Operating Temperature Max:155°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +155°C; Proof Voltage:1000V; Resistance:50kohm; Resistor Element Material:Cermet; Resistor Mounting:Surface Mount Device; Temperature Coeff. +:100ppm/°C; Temperature Coeff. -:100ppm/°C; Tolerance +:10%; Tolerance -:10%; Track Taper:Linear; Voltage Rating:250V; Voltage Rating V DC:250V
Availability: In Stock
Package Type: SMD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TS63Y503KT20 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

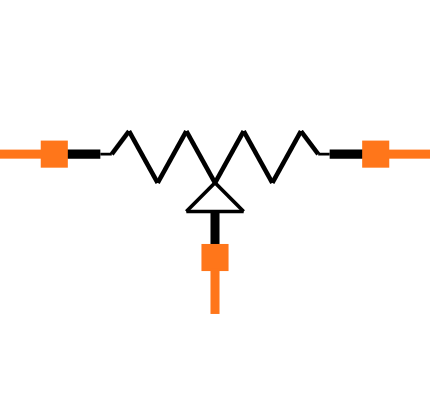

Symbol
No web preview
This Symbol is Available for

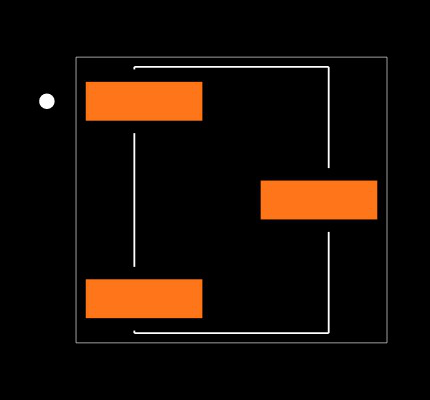

Footprint
No web preview
This Footprint is Available for

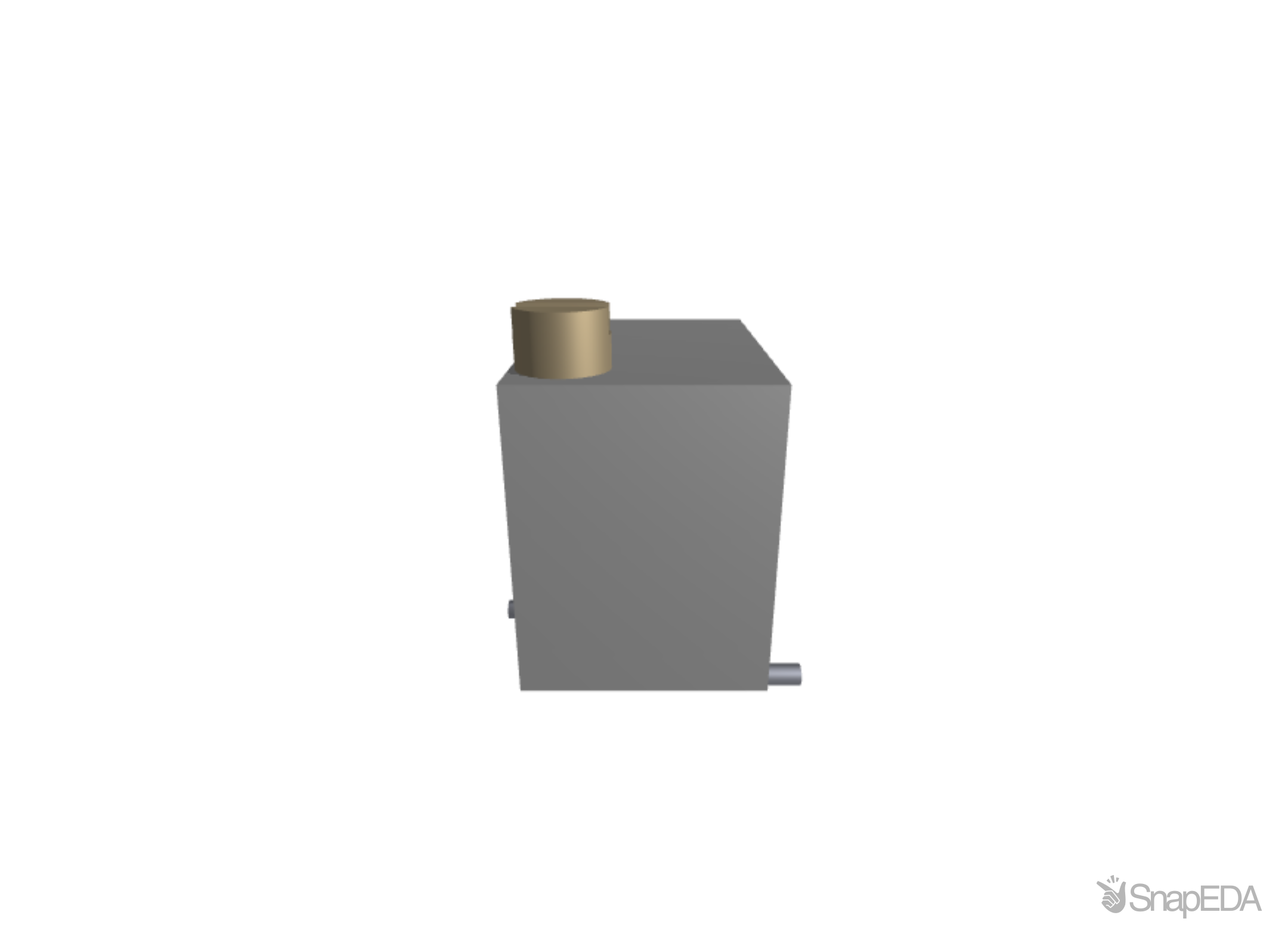

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TS63Y503KT20
| Part Name | TS63Y503KT20 |
| Manufacturer | Vishay |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TS63Y503KT20 by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
216
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
190
|
|
Visit Site | |
| Farnell UK |
41
|
|
Visit Site | |
| Newark |
41
|
|
Visit Site | |
| Schukat Electronic |
190
|
|
Visit Site | |
| TME |
1
|
|
Visit Site | |
| element14 Singapore |
41
|
|
Visit Site |
No issues have been reported for the TS63Y503KT20
