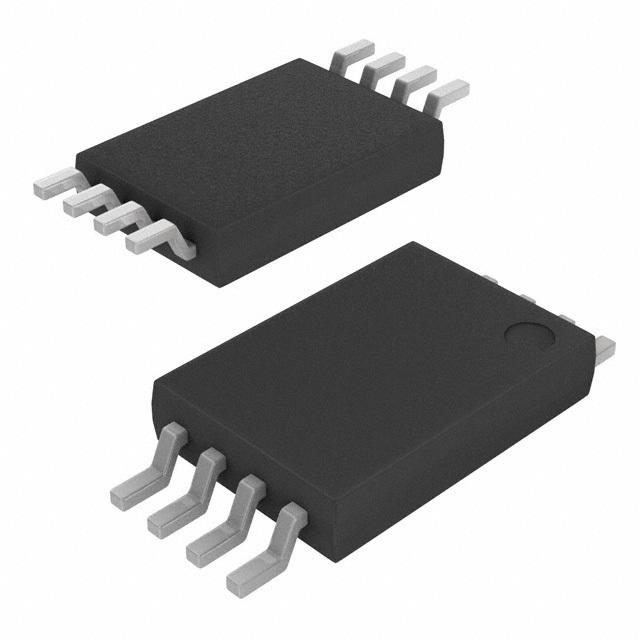

TS922AIPT
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail 8-TSSOP
Availability: In Stock
Package Type: TSSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TS922AIPT by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

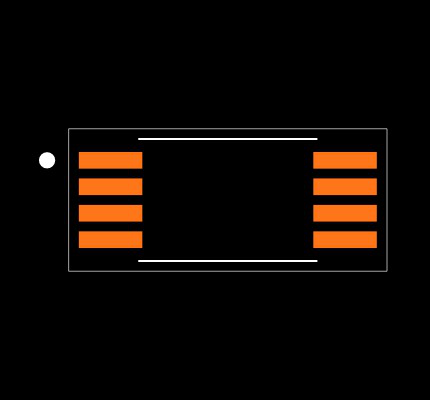

Footprint
No web preview
This Footprint is Available for

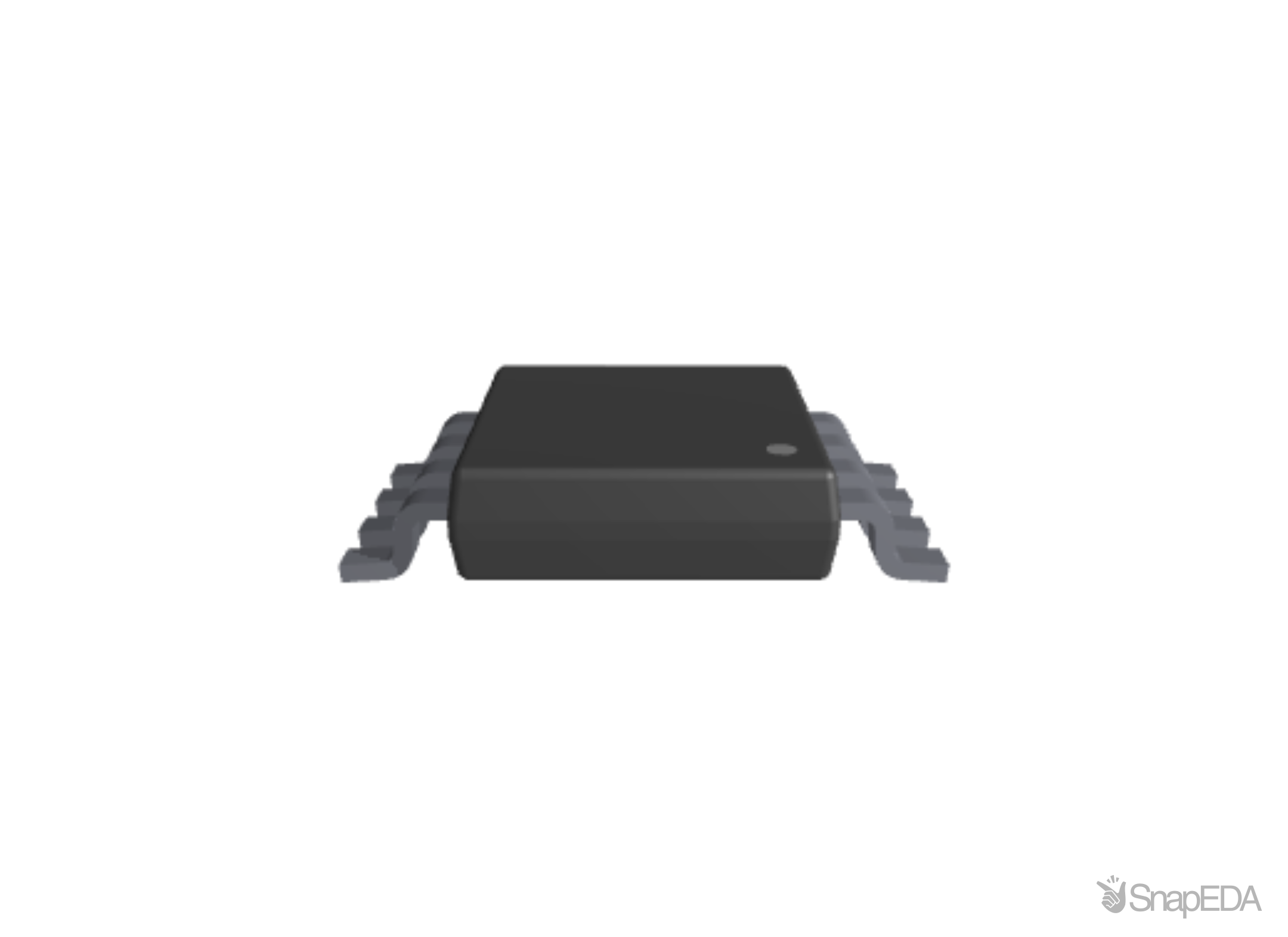

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TS922AIPT
| Part Name | TS922AIPT |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 106 dB |
| Typical Input Voltage Noise Density (V) | 9 (nV/√Hz) |
| Dimensions | 3.1 x 4.5 x 1.05 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 1.3 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | Rail to Rail Input/Output |
| Maximum Operating Frequency | 1 kHz |
| Typical Gain Bandwidth Product | 4 (MHz) |
| Typical Single Supply Voltage (V) | 2.7 → 12 V |
| Width | 4.5 (mm) |
| Length | 3.1 (mm) |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Audio |
| Height | 1.05 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
Inventory for the TS922AIPT by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,760
|
|
Visit Site | |
|
★ Featured
|
11,787
|
|
Visit Site | |
|
★ Featured
|
59,847
|
805 x $0.37
|
Visit Site | |
| Arrow Europe |
76,000
|
4,000 x $0.33
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
2,436
|
|
Visit Site | |
| Newark |
2,436
|
|
Visit Site | |
| TME |
4,042
|
|
Visit Site | |
| Verical |
8,000
|
|
Visit Site | |
| element14 Singapore |
2,436
|
|
Visit Site |
No issues have been reported for the TS922AIPT
