Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
TSL2561
SENSOR, LIGHT-DIGITAL CONVERTER, I2C; IC Function: Light to Digital Converter; Supply Voltage Min: 2.7V; Supply Voltage Max: 3.6V; IC Package Type: TMB; No. of Pins: 6Pins; Operating Temperature Min: -30°C; Operating Temperature Max: 70°C; Product Range: -; Automotive Qualification Standard: -; RoHS Phthalates Compliant: To Be Advised; MSL: MSL 2 - 1 year; SVHC: No SVHC (07-Jul-2017); Brief Features: Programmable Interrupt Function, 16bit Digital Output with SMBus; Frequency: 735kHz; Operating Temperature Range: -30°C to +70°C; Response Time: 400ms; Supply Current: 0.6mA; Supply Voltage: 3V; Supply Voltage Range: 2.7V to 3.6V
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TSL2561 by ams and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

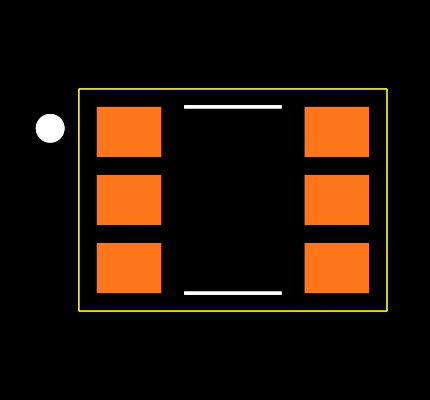

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TSL2561
| Part Name | TSL2561 |
| Manufacturer | ams OSRAM |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the TSL2561
If you experienced any issues with the symbol or footprint, please report it.
