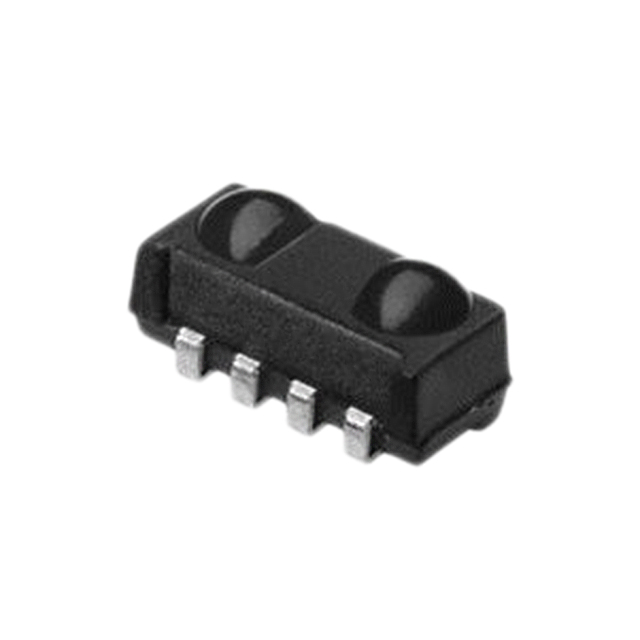

TSOP75236TT
Remote Receiver Sensor, 36.0kHz 45m Surface Mount
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TSOP75236TT by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TSOP75236TT
| Part Name | TSOP75236TT |
| Manufacturer | Vishay |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Supply Voltage (V) | 2.5 (V) |
| Maximum Transmission Distance | 45 (m) |
| Dimensions | 6.8 x 3 x 3.2 (mm) |
| Mounting Type | Surface Mount |
| Carrier Frequency | 36 (kHz) |
| Daylight Filter Type | Epoxy Lens Cap |
| Angle Of Half Transmission Distance | ±50 ° |
| Supply Voltage Range (V) | 2.5 → 5.5 V |
| Maximum Supply Voltage (V) | 5.5 (V) |
| Width | 3 (mm) |
| Length | 6.8 (mm) |
| Number Of Pins | 4 |
| Components | Photo Detector, Preamplifier |
| Wavelength Of Peak Sensitivity | 950 (nm) |
| Height | 3.2 (mm) |
| Output Current (A) | 5 (mA) |
Inventory for the TSOP75236TT by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,224
|
|
Visit Site | |
|
★ Featured
|
3,422
|
N/A | Visit Site | |
| Mouser |
|
|
Visit Site |
No issues have been reported for the TSOP75236TT
