TSR 0.5-2418SM
0.5 Amp POL switching regulator, wide input range, pos.-pos. circuit, SMD package
Availability: In Stock
Package Type: SMD-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TSR 0.5-2418SM by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

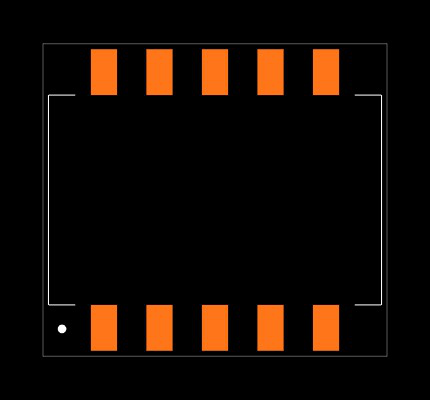

Footprint
No web preview
This Footprint is Available for

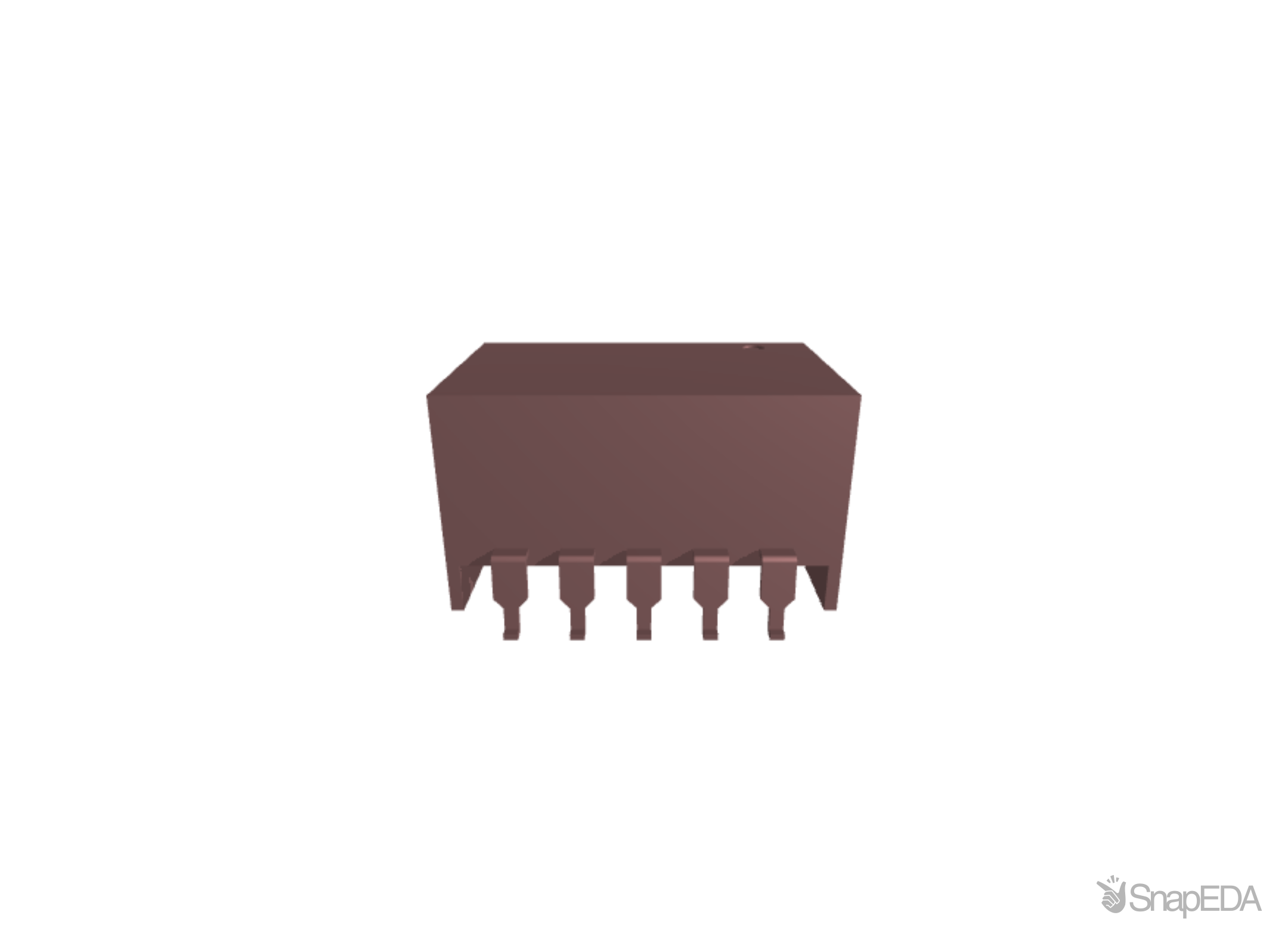

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TSR 0.5-2418SM
| Part Name | TSR 0.5-2418SM |
| Manufacturer | Traco Power |
| Category | Power Products |
| Product Length | 15.3 |
| Product Width | 9.6 |
| GTIN | 7613441047157 |
| ESD Sensitive | No |
| Vout | 1.8 |
| Insulation System | Non-isolated |
| REACH | Yes |
| Product Height | 9.24 |
| Efficiency | 82.0 |
| Compatible Accessories | TCK-044,TCK-047 |
| Housing Type | Plastic Case |
| Family | DC/DC Converter non-isolated (POL) |
| Remote on-off function? | Yes |
| Number of Outputs | single |
| Adjustable output? | Yes |
| Iout | 500 |
| Warranty Period | 3-year |
| Temperature Range Max. | 90 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | SMD 10 Pin |
| RoHS | Yes |
| Weight | 1.7 |
| Mounting Type | PCB Mount |
| Series Name | TSR 0.5SM |
| Lifecycle Status | Active |
| Vin | 4.75-32 |
| high_runner | TRUE |
| Temperature Range Min. | -40 |
| MSL level | Level 2 (JSTD033C) |
| Connection Type | SMD (Surface-Mount Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TSR 0.5-2418SM by Traco Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
10 x $8.52
|
Visit Site | |
| CoreStaff |
10
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| Verical |
10
|
10 x $7.63
|
Visit Site |
No issues have been reported for the TSR 0.5-2418SM
