TSR 3-2450A
3 Amp POL switching regulator, wide input range, pos.-pos. circuit, open frame, LM78 compatible, SIP-5
Availability: In Stock
Package Type: SIP-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TSR 3-2450A by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

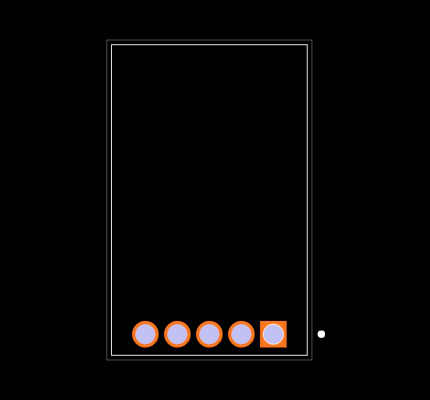

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TSR 3-2450A
| Part Name | TSR 3-2450A |
| Manufacturer | Traco Power |
| Category | Power Products |
| Number of Outputs | single |
| Product Width | 10.4 |
| GTIN | 7613441060583 |
| Adjustable output? | Yes |
| Vout | 3 |
| Insulation System | Non-isolated |
| REACH | Yes |
| Product Height | 16.5 |
| Efficiency | 91.0 |
| Housing Type | Open Frame |
| Remote on-off function? | Yes |
| Product Length | 6.0 |
| ESD Sensitive | No |
| Iout | 3000 |
| Warranty Period | 3-year |
| Temperature Range Max. | 85 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | SIP5 |
| RoHS | Yes |
| Family | DC/DC Converter non-isolated (POL) |
| Mounting Type | PCB Mount |
| Series Name | TSR 3 |
| Lifecycle Status | Active |
| Vin | 10-30 |
| high_runner | TRUE |
| Weight | 2.1 |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
