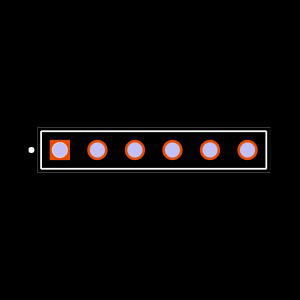

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now

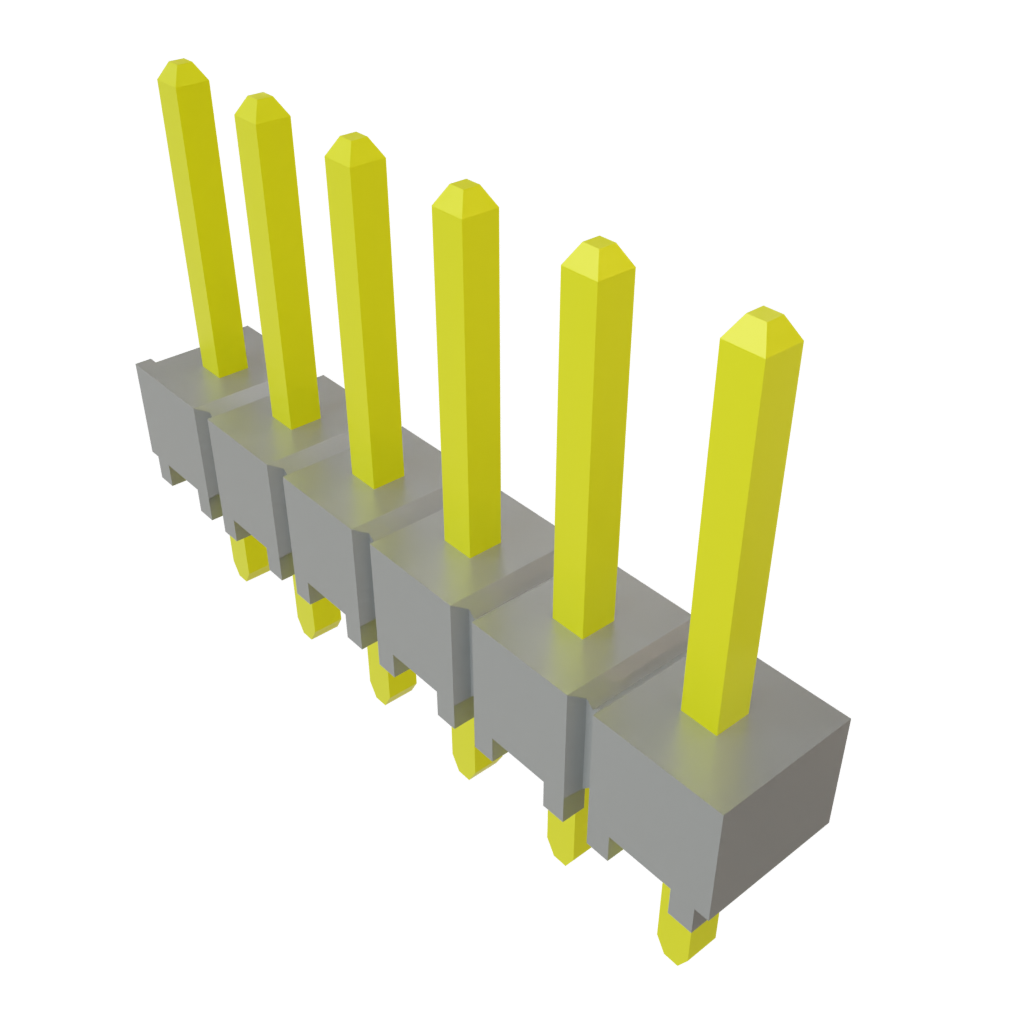

TSW-106-07-G-S
SnapVerified
TSW - Samtec 2.54mm Pin Header 10.92mm Overall Pin Length (07) - Fast Stock
Availability: In Stock
Country of Origin: Vietnam
CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TSW-106-07-G-S by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Gold Plating Options

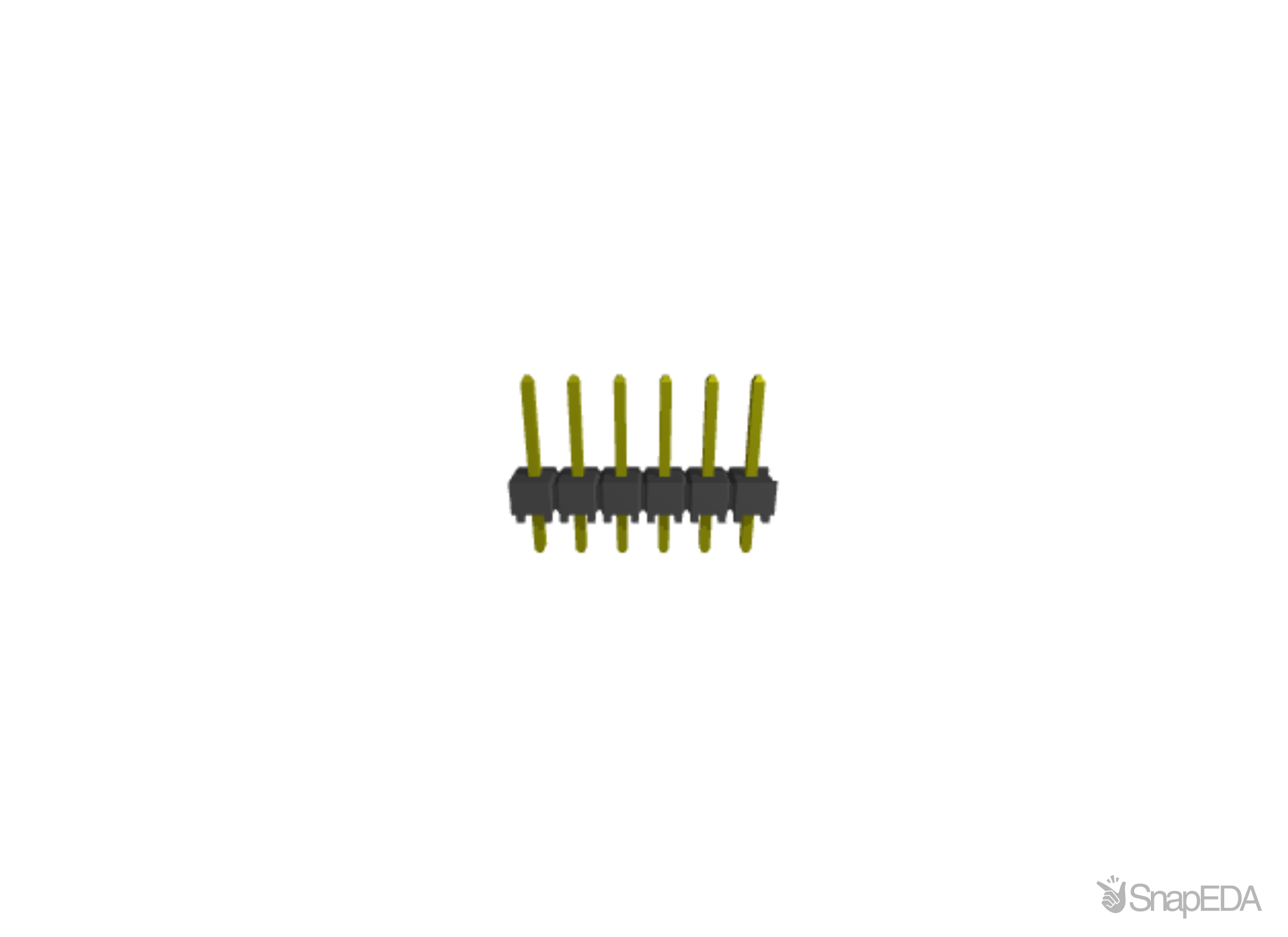

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TSW-106-07-G-S
| Part Name | TSW-106-07-G-S |
| Manufacturer | Samtec Inc. |
| HTS Number | 8536.69 |
| Packaging | Bulk |
| Series | TSW |
| Country of Origin | Vietnam |
| ECCN Category | EAR99 |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 4.7 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 465.0 V |
| Series | TSW |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Board to Board, Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 6 |
| Contact Material | Phosphor Bronze |
