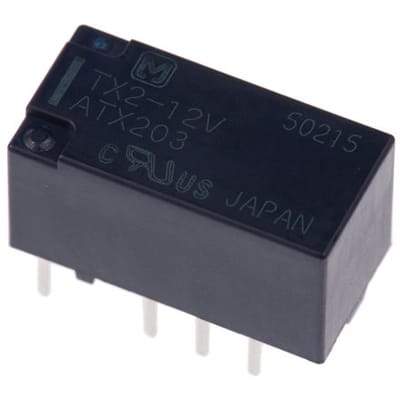

TX2-12V
Relay 2 A @ 30 VDC High Capacity 1000 Megohms (Min.) @ 500 VDC PCB | Panasonic Electronic Components TX2-12V
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TX2-12V by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TX2-12V
| Part Name | TX2-12V |
| Manufacturer | Panasonic |
| Category | Relays |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Latching | No |
| Coil Voltage (V) | 12 (V dc) |
| Switching Current (A) | 11.7 (mA) |
| Mounting Type | PCB Mount |
| Contact Configuration | DPDT |
