TXLN 060-112
60 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TXLN 060-112 by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

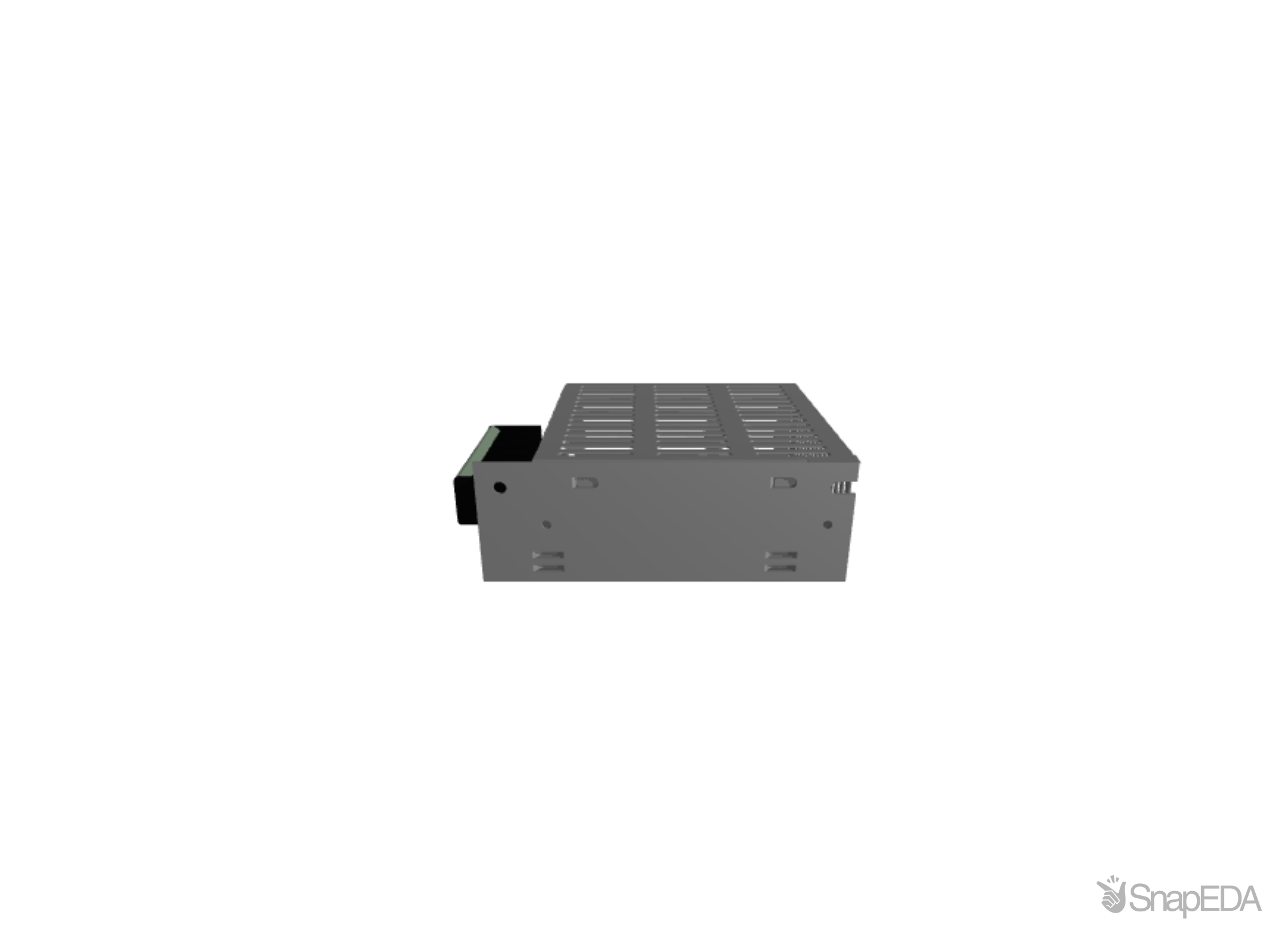

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TXLN 060-112
| Part Name | TXLN 060-112 |
| Manufacturer | Traco Power |
| Product Length | 99.0 |
| Product Width | 82.0 |
| GTIN | 7613441064437 |
| Adjustable output? | Yes |
| Isolation Voltage Input and Output (V) | 3000 VAC |
| Power | 60.0 |
| Insulation System | Reinforced Insulation |
| REACH | Yes |
| Product Height | 35.0 |
| Efficiency | 81.0 |
| Housing Type | Metal Case |
| Family | AC/DC Power Supply |
| Remote on-off function? | No |
| Number of Outputs | single |
| ESD Sensitive | No |
| Protection Class | Class I |
| Iout | 5000 |
| Warranty Period | 3-year |
| Temperature Range Max. | 70 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| RoHS | Yes |
| Vout | 12 |
| Mounting Type | Chassis Mount |
| Series Name | TXLN |
| Lifecycle Status | Active |
| Vin | 88-264 |
| high_runner | TRUE |
| Weight | 340.0 |
| Temperature Range Min. | -20 |
| Connection Type | Screw Terminal |
