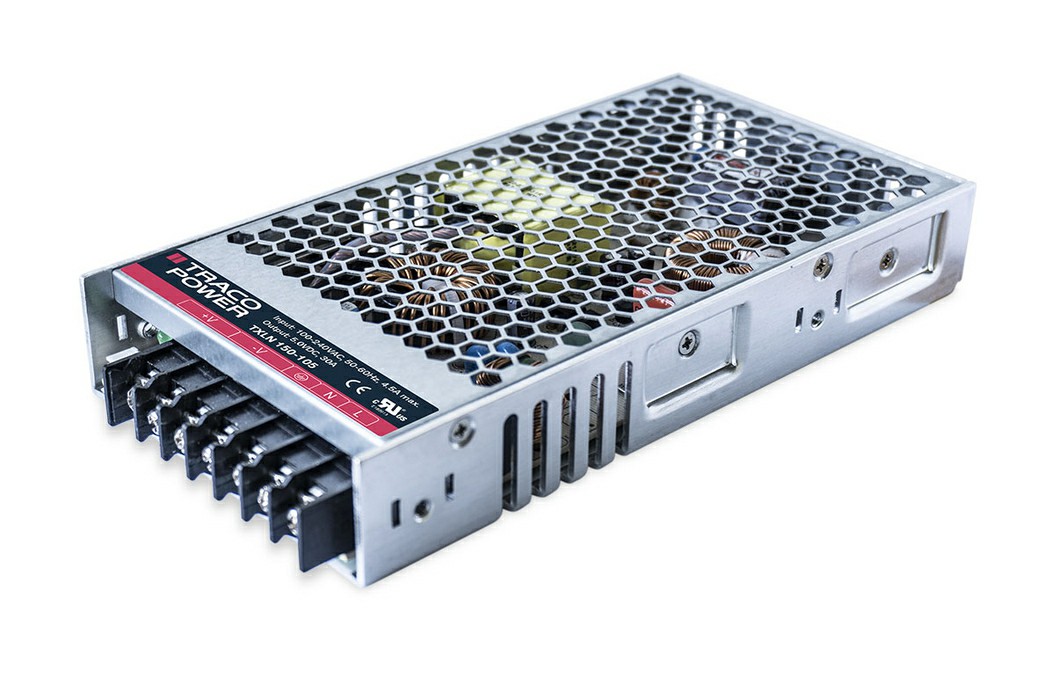

TXLN 150-124
150 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TXLN 150-124 by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TXLN 150-124
| Part Name | TXLN 150-124 |
| Manufacturer | Traco Power |
| Product Length | 188.0 |
| Product Width | 99.0 |
| GTIN | 7613441064604 |
| Adjustable output? | Yes |
| Isolation Voltage Input and Output (V) | 3000 VAC |
| Vout | 24 |
| Insulation System | Reinforced Insulation |
| REACH | Yes |
| Product Height | 30.0 |
| Efficiency | 89.0 |
| Housing Type | Metal Case |
| Family | AC/DC Power Supply |
| Remote on-off function? | Yes |
| Number of Outputs | single |
| ESD Sensitive | No |
| Protection Class | Class I |
| Iout | 6300 |
| Warranty Period | 3-year |
| Temperature Range Max. | 70 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| RoHS | Yes |
| Power | 150.0 |
| Mounting Type | Chassis Mount |
| Series Name | TXLN |
| Lifecycle Status | Active |
| Vin | 85-264 |
| high_runner | TRUE |
| Weight | 560.0 |
| Temperature Range Min. | -30 |
| Connection Type | Screw Terminal |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TXLN 150-124 by Traco Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
237
|
|
Visit Site | |
| Arrow Europe |
63
|
|
Visit Site | |
| RS Americas |
1
|
|
Visit Site |
No issues have been reported for the TXLN 150-124
