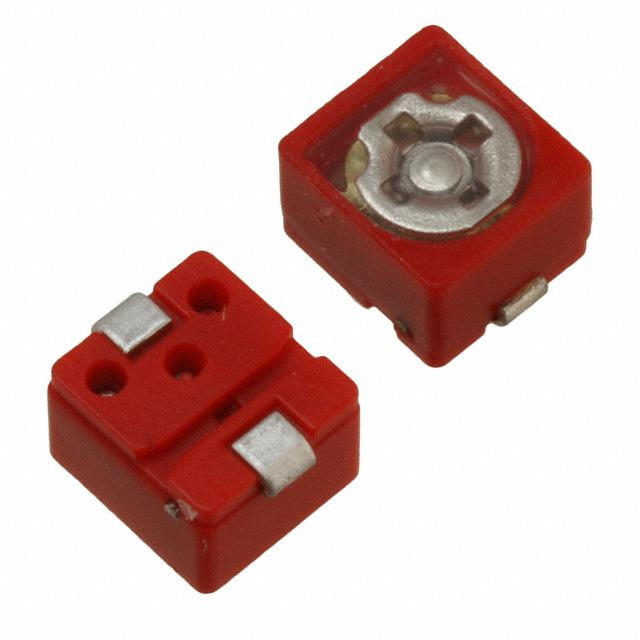

TZB4R200AB10R00
4.5 ~ 20pF Trimmer Capacitor 100 V Top Surface Mount
Availability: Out of Stock
Package Type: QFN-56
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TZB4R200AB10R00 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

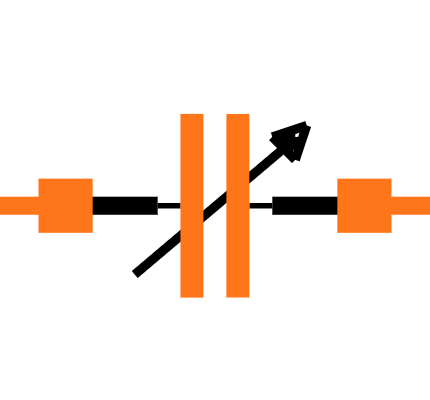

Symbol
No web preview
This Symbol is Available for

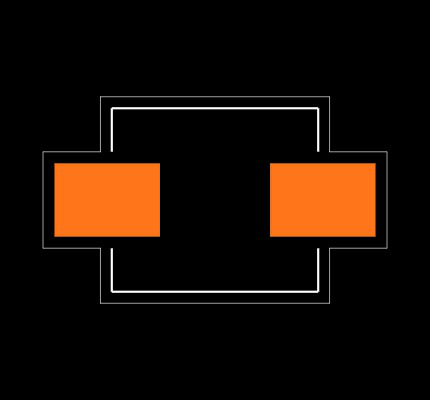

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TZB4R200AB10R00
| Part Name | TZB4R200AB10R00 |
| Manufacturer | Murata |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=TZB4R200AB10R00 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Capacitive Range | 4.5 → 20 (pF) |
| Dimensions | 4.5 x 4 x 3 (mm) |
| Mounting Type | Surface Mount |
| Package Case | B4 |
| Series | TZB4 |
| Length | 4.5 (mm) |
| Height | 3 (mm) |
| Depth | 4 (mm) |
| Minimum Capacitance | 4.5 (pF) |
| Minimum Operating Temperature | -25 (°C) |
| Maximum Capacitance | 20 (pF) |
| Tolerance | 0 → +50 (%) |
| Maximum Operating Temperature | +85 (°C) |
| Voltage (V) | 100 (V dc) |
