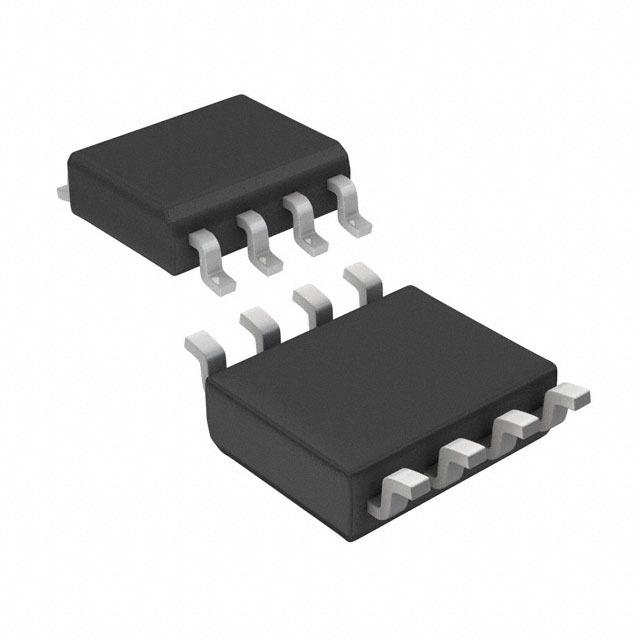

UA741IDT
Standard (General Purpose) Amplifier 1 Circuit 8-SOIC
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UA741IDT by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

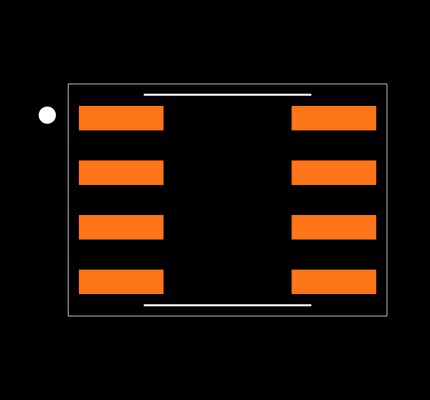

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UA741IDT
| Part Name | UA741IDT |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Typical Slew Rate | 0.5 (V/µs) |
| Typical Gain Bandwidth Product | 1 (MHz) |
| Width | 4 (mm) |
| Input Offset Current (A) | 70 (nA) |
| Power Supply Type | Single |
| Rail To Rail | No |
| Package Type | SOIC |
| Typical Voltage Gain (V) | 106 dB |
| Maximum Operating Temperature | +105 °C |
| Typical Single Supply Voltage (V) | 5 → 40 V |
| Pin Count | 8 |
| Offset Voltage (V) | 6 (mV) |
| Typical Dual Supply Voltage (V) | ±15 (V) |
| Typical Input Voltage Noise Density (V) | 23 (nV/√Hz) |
| Mounting Type | Surface Mount |
| Output Current (A) | 40 mA |
| Input Voltage Range (V) | 5 → 40 V |
| Number Of Channels Per Chip | 1 |
| Length | 5 (mm) |
| Height | 1.5 (mm) |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | General Purpose |
| Maximum Input Voltage (V) | 40 V |
| Minimum Input Voltage (V) | 5 V |
Inventory for the UA741IDT by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,843
|
|
Visit Site | |
|
★ Featured
|
12,500
|
1,040 x $0.29
|
Visit Site | |
| Arrow Electronics |
5,000
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
757
|
|
Visit Site | |
| Newark |
1,257
|
|
Visit Site | |
| TME |
1,620
|
|
Visit Site | |
| Verical |
5,000
|
|
Visit Site | |
| element14 Singapore |
757
|
|
Visit Site |
No issues have been reported for the UA741IDT
If you experienced any issues with the symbol or footprint, please report it.
