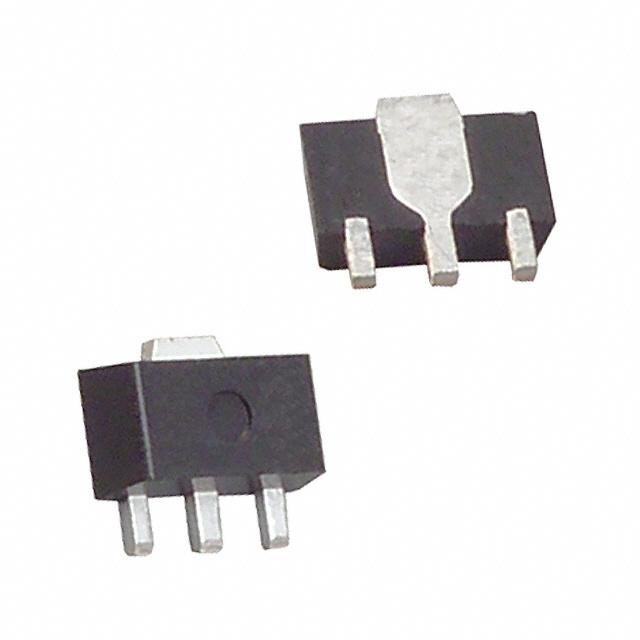

UA78L10ACPK
100-mA 30-V linear voltage regulator
Availability: In Stock
Package Type: SOT-89-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UA78L10ACPK by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

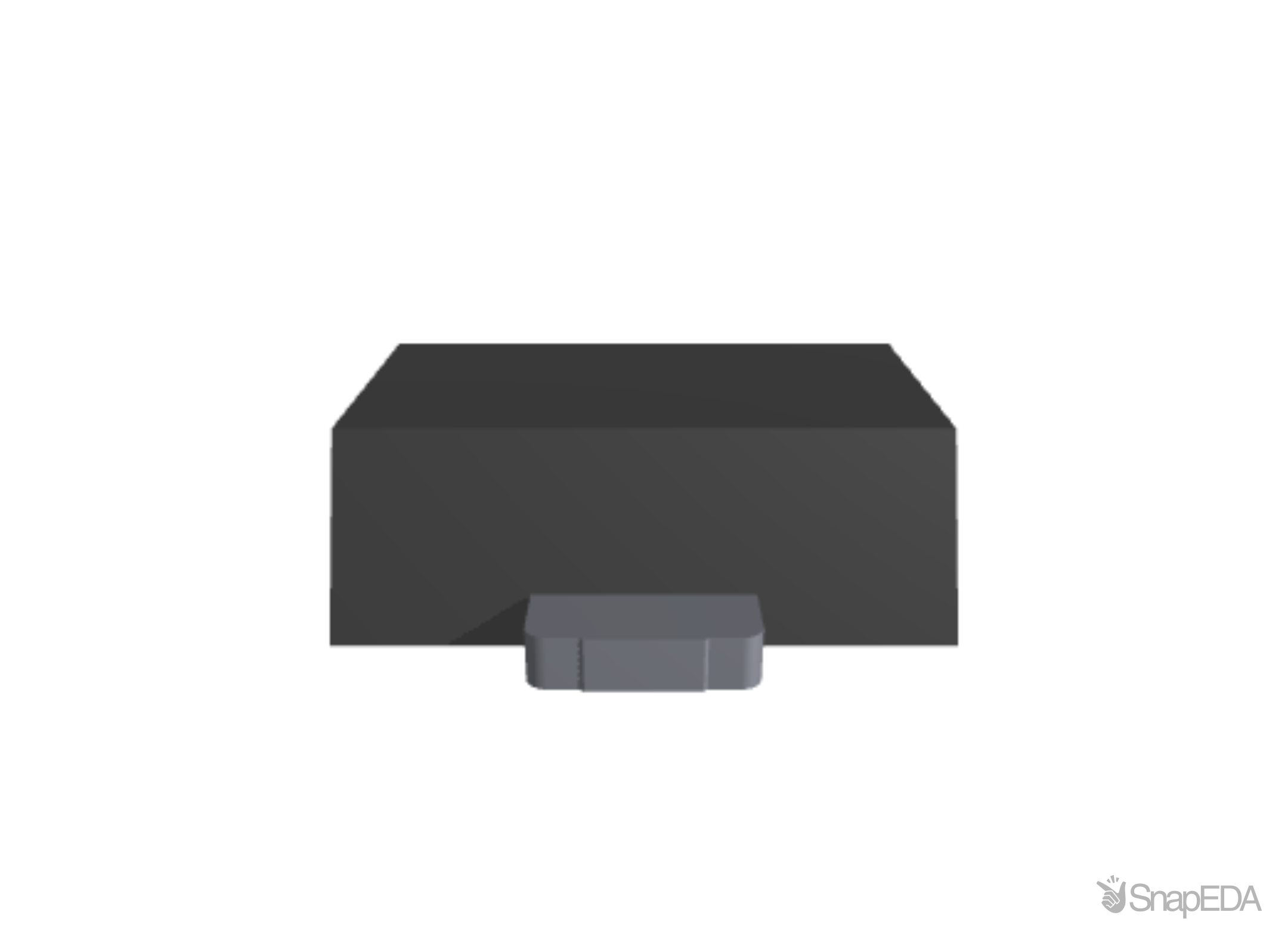

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UA78L10ACPK
| Part Name | UA78L10ACPK |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 90 mV |
| Dimensions | 4.5 x 2.5 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Line Regulation | 175 mV |
| Output Type | Fixed |
| Height | 1.5 (mm) |
| Width | 2.5 (mm) |
| Length | 4.5 (mm) |
| Output Voltage (V) | 10 V |
| Package Type | SOT-89 |
| Minimum Operating Temperature | 0 °C |
| Minimum Input Voltage (V) | 12.5 V |
| Maximum Output Current (A) | 100 (mA) |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 25 V |
| Accuracy | ±5 (%) |
