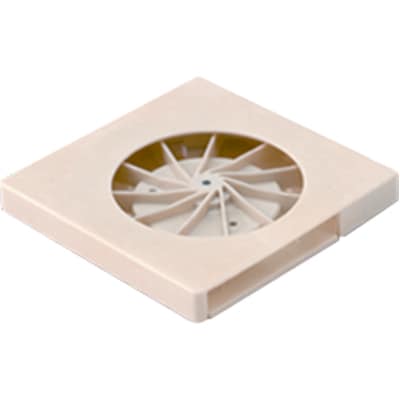

UB3H3-700
FAN; BLOWER; DC; 3V; 6.17CFM; 0.037A; 0.1W; 12500RPM; VAPO BEARING; 17X17X3MM | Sunon Fans UB3H3-700
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UB3H3-700 by Sunon Fans and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UB3H3-700
| Part Name | UB3H3-700 |
| Manufacturer | Sunon Fans |
| Category | Fans & Thermal Management |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Blower Type | Blower |
| Series | Mighty Mini |
| Ac Or Dc Operation | dc |
| Dimensions | 17x17x3 (mm) |
| Distrelec Product Id | 30148244 |
Inventory for the UB3H3-700 by Sunon Fans from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
|
|
Visit Site | |
| Conrad |
8
|
|
Visit Site | |
| RS UK |
86
|
1 x $22.78
|
Visit Site |
No issues have been reported for the UB3H3-700
