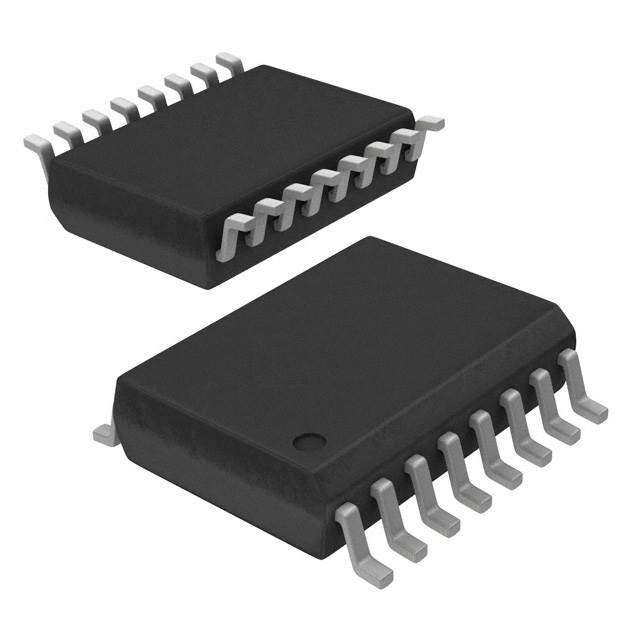

UC3525ADW
35V, Dual 0.4A 400KHz PWM controller with 0C to 70C
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UC3525ADW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

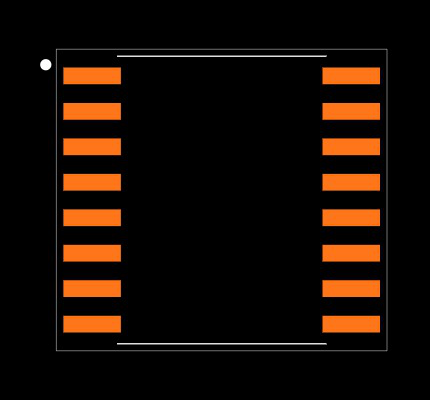

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UC3525ADW
| Part Name | UC3525ADW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 16 |
| Number Of Outputs | 2 |
| Maximum Duty Cycle | 49 (%) |
| Dimensions | 10.28 x 7.52 x 2.35 (mm) |
| Maximum Operating Supply Voltage (V) | 35 V |
| Fall Time | 50 (ns) |
| Control Method | Voltage |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Rise Time | 100 (ns) |
| Maximum Switching Frequency | 400 kHz |
| Width | 7.52 (mm) |
| Length | 10.28 (mm) |
| Height | 2.35 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Surface Mount |
| Pwm Controller Type | Voltage Mode |
| Maximum Operating Temperature | +70 °C |
| Output Current (A) | 400 mA |
| Topology | Boost, Buck, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull |
Inventory for the UC3525ADW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,357
|
|
Visit Site | |
|
★ Featured
|
10,010
|
178 x $1.69
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site |
No issues have been reported for the UC3525ADW
