UC3525BN
Enhanced 35V, Dual 0.4A 400KHz PWM controller with Low output when off, 0C to 70C
Availability: In Stock
Package Type: PDIP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UC3525BN by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

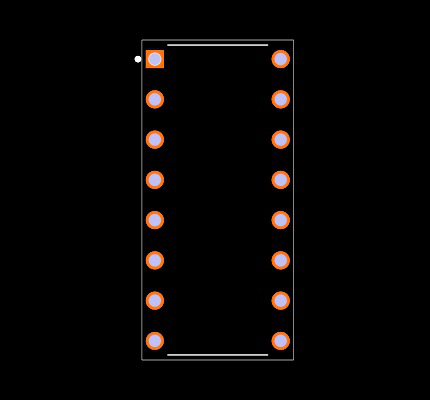

Footprint
No web preview
This Footprint is Available for

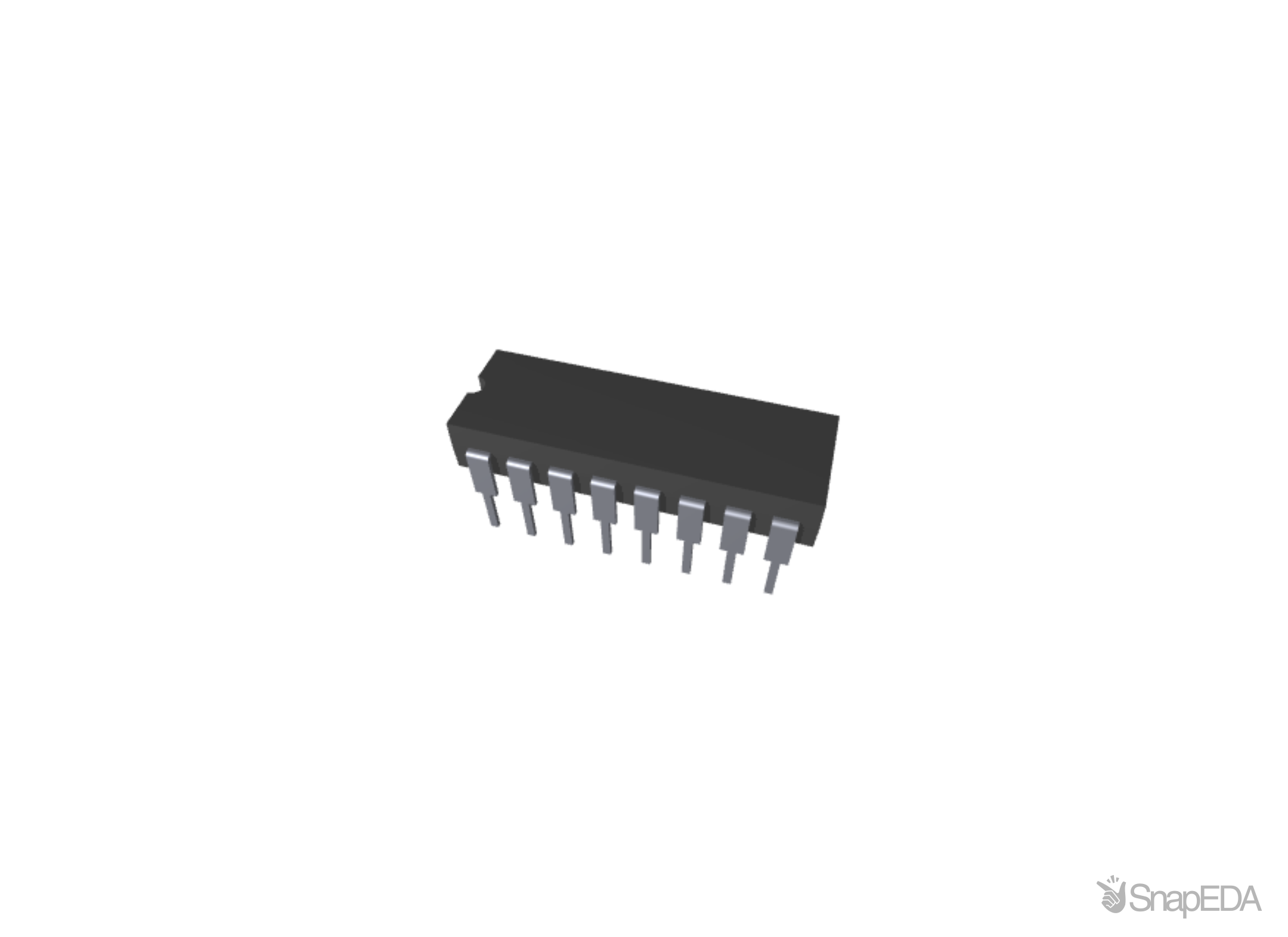

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UC3525BN
| Part Name | UC3525BN |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 16 |
| Rise Time | 100 (ns) |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Output Current (A) | 400 mA |
| Fall Time | 50 (ns) |
| Control Method | Voltage |
| Maximum Switching Frequency | 400 kHz |
| Width | 6.35 (mm) |
| Length | 19.3 (mm) |
| Package Type | PDIP |
| Maximum Duty Cycle | 49 (%) |
| Mounting Type | Through Hole |
| Height | 4.57 (mm) |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Topology | Boost, Buck, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull |
