UC3854AN
Enhanced bipolar CCM PFC controller with 16V/10V UVLO for 50Hz-400Hz line freq., 0°C to 70°C
Availability: In Stock
Package Type: PDIP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UC3854AN by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

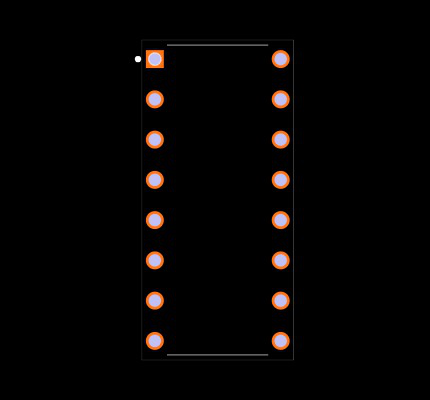

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UC3854AN
| Part Name | UC3854AN |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Zero Power Detection | Yes |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Maximum Operating Supply Voltage (V) | 20 V |
| Maximum Source Current (A) | 14 (µA) |
| Minimum Operating Supply Voltage (V) | 10 V |
| Length | 19.3 (mm) |
| Maximum Switching Frequency | 115 kHz |
| Start Up Supply Current (A) | 0.3 (mA) |
| Width | 6.35 (mm) |
| Maximum Supply Current (A) | 18 mA |
| Package Type | PDIP |
| Minimum Operating Temperature | 0 °C |
| Ic Type | Power Factor Pre-Regulator Circuit IC |
| Mounting Type | Through Hole |
| Height | 4.57 (mm) |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 16 |
Inventory for the UC3854AN by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
352
|
|
Visit Site | |
|
★ Featured
|
366
|
|
Visit Site | |
|
★ Featured
|
623
|
8 x $47.96
|
Visit Site | |
| Arrow Europe |
150
|
|
Visit Site | |
| Texas Instruments |
50
|
|
Visit Site |
No issues have been reported for the UC3854AN
