UCC28070APW
Two-phase Interleaved CCM PFC controller with Extended Frequency Range (10kHz to 300kHz)
Availability: In Stock
Package Type: TSSOP-20
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UCC28070APW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

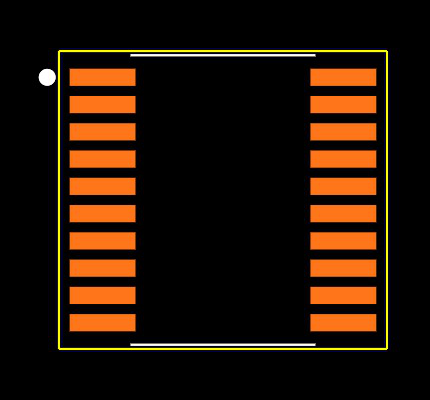

BuildFootprint
No web preview
This Footprint is Available for

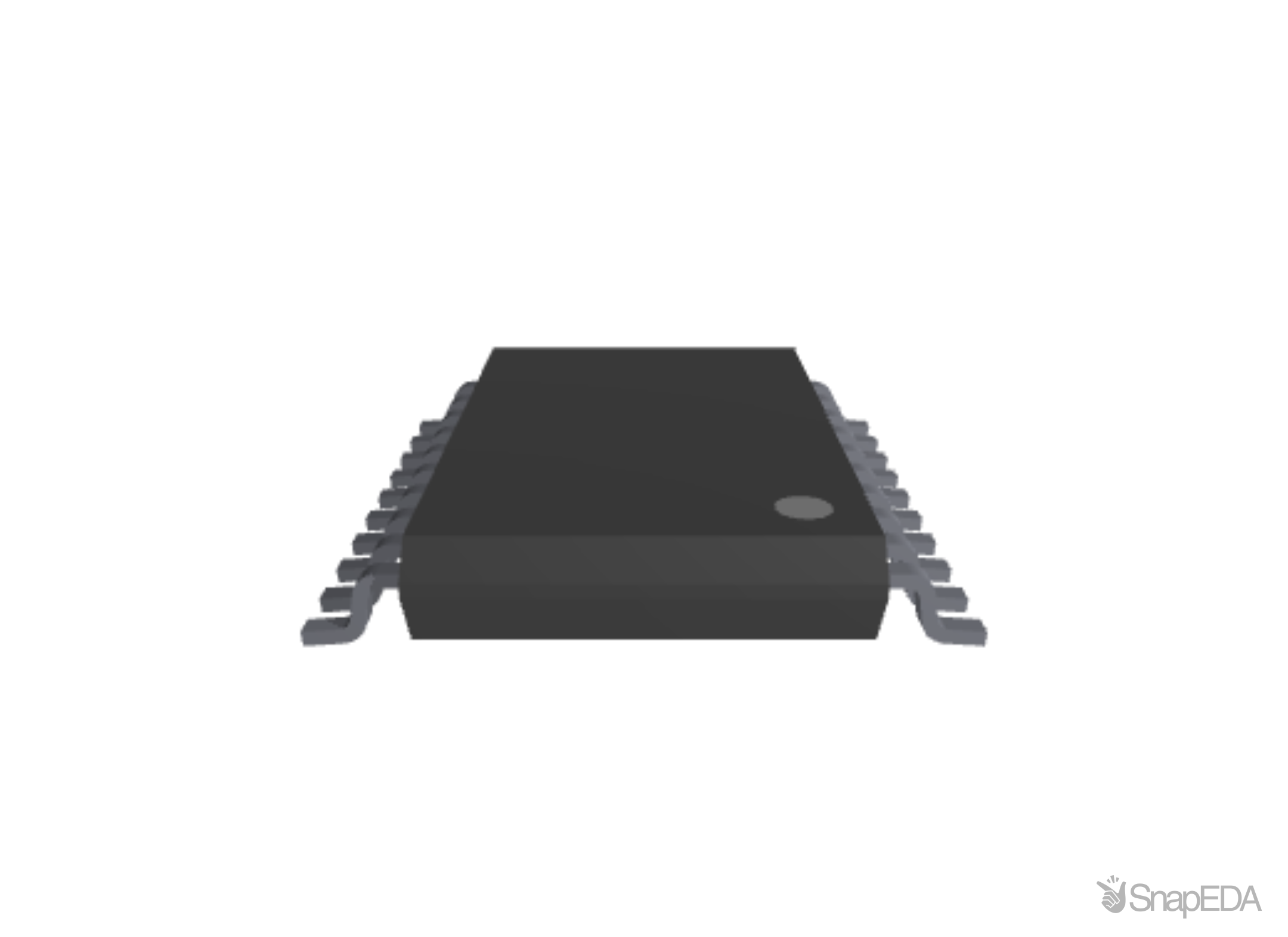

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the UCC28070APW
| Part Name | UCC28070APW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Zero Power Detection | Yes |
| Dimensions | 6.6 x 4.5 x 1.05 (mm) |
| Maximum Operating Supply Voltage (V) | 22 V |
| Maximum Source Current (A) | -30 (µA) |
| Length | 6.6 (mm) |
| Maximum Switching Frequency | 330 kHz |
| Start Up Supply Current (A) | 20 (mA) |
| Width | 4.5 (mm) |
| Maximum Supply Current (A) | 20 mA |
| Package Type | TSSOP |
| Maximum Sink Current (A) | 30 (µA) |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Height | 1.05 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 20 |
Inventory for the UCC28070APW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
201
|
|
Visit Site | |
|
★ Featured
|
6,000
|
310 x $1.14
|
Visit Site | |
| Arrow Europe |
70
|
70 x $2.36
|
Visit Site | |
| Texas Instruments |
40,908
|
|
Visit Site |
No issues have been reported for the UCC28070APW
