UCC284DP-ADJ
500-mA, negative, adjustable low-dropout voltage regulator from -40°C to +85°C
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UCC284DP-ADJ by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

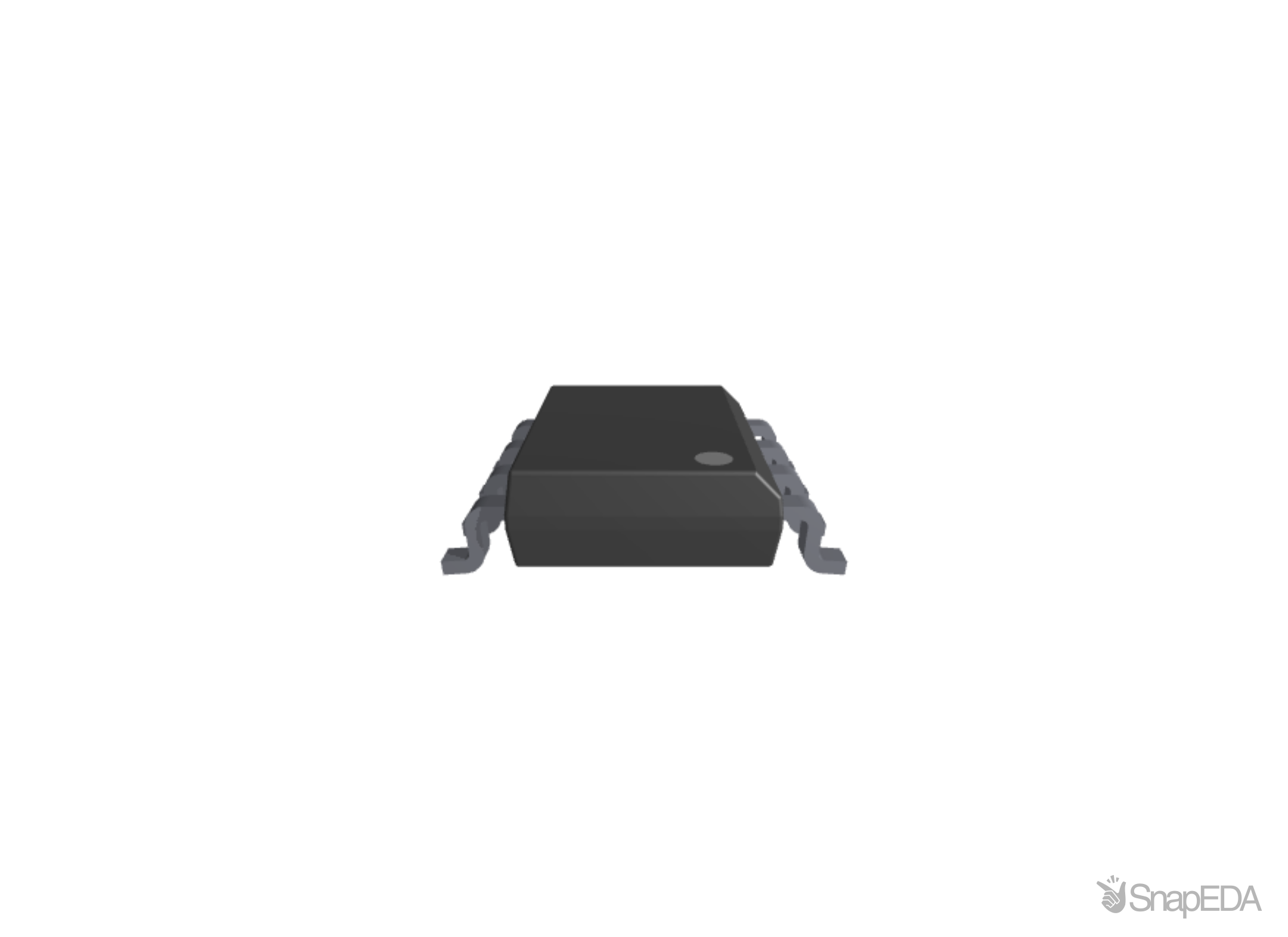

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UCC284DP-ADJ
| Part Name | UCC284DP-ADJ |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Negative |
| Number Of Outputs | 1 |
| Pin Count | 8 |
| Load Regulation | 0.18 % |
| Dimensions | 4.9 x 3.91 x 1.58 (mm) |
| Mounting Type | Surface Mount |
| Quiescent Current (A) | 0.2 (mA) |
| Reference Voltage (V) | -1.23 (V) |
| Regulator Type | Low Dropout Voltage |
| Output Type | Adjustable |
| Height | 1.58 (mm) |
| Width | 3.91 (mm) |
| Length | 4.9 (mm) |
| Output Voltage (V) | -15 → -1.25 V |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | -3.5 V |
| Maximum Output Current (A) | 500 (mA) |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Voltage (V) | -15 V |
| Line Regulation | 3 mV |
