UCC38C45D
20V, 1-A, Low current 1MHz current mode PWM controller with 8.4V/7.6V UVLO 50% duty cycle, 0C to 70C
Availability: In Stock
Package Type: SOIC-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UCC38C45D by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

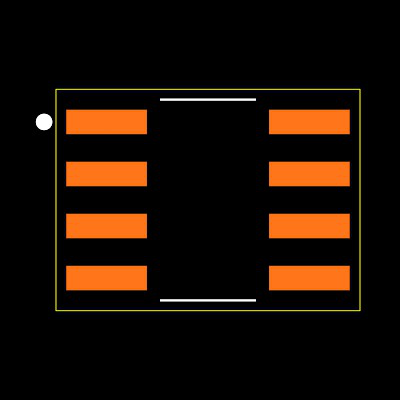

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the UCC38C45D
| Part Name | UCC38C45D |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Duty Cycle | 50 (%) |
| Dimensions | 4.9 x 3.91 x 1.58 (mm) |
| Output Current (A) | 200 mA |
| Fall Time | 20 (ns) |
| Maximum Operating Temperature | +70 °C |
| Control Method | Current |
| Maximum Switching Frequency | 1000 kHz |
| Width | 3.91 (mm) |
| Length | 4.9 (mm) |
| Output Voltage (V) | 18 V |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Surface Mount |
| Pwm Controller Type | Current Mode |
| Rise Time | 25 (ns) |
| Height | 1.58 (mm) |
| Pin Count | 8 |
| Topology | Boost, Buck, Flyback, Forward |
Inventory for the UCC38C45D by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
375 x $1.46
|
Visit Site | |
|
★ Featured
|
5,370
|
N/A | Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the UCC38C45D
