UCR006YVPFLR470
470 mOhms ±1% 0.1W, 1/10W Chip Resistor 0201 (0603 Metric) Current Sense Thick Film
Availability: In Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UCR006YVPFLR470 by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

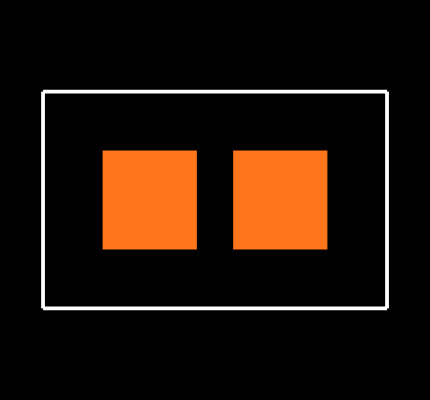

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UCR006YVPFLR470
| Part Name | UCR006YVPFLR470 |
| Manufacturer | Rohm |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 0201 (0603M) |
| Tolerance | 1 (%) |
| Power Rating | 0.1 (W) |
| Technology | Thick Film |
| Resistance | 470 (mΩ) |
Inventory for the UCR006YVPFLR470 by Rohm from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
50,975
|
|
Visit Site | |
| Chip One Stop |
15,000
|
|
Visit Site | |
| CoreStaff |
12,000
|
|
Visit Site | |
| Verical |
12,000
|
|
Visit Site |
No issues have been reported for the UCR006YVPFLR470
