UDZSTE-1727B

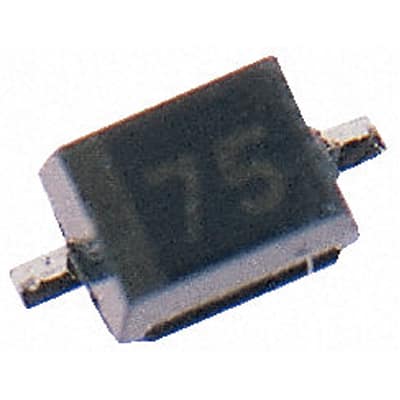

ROHM UDZSTE-1727B Zener Diode, 27V 2% 0.2 W SMT 2-Pin SOD-323F | ROHM Semiconductor UDZSTE-1727B
Availability: In Stock
Package Type: SOD-323
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UDZSTE-1727B by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

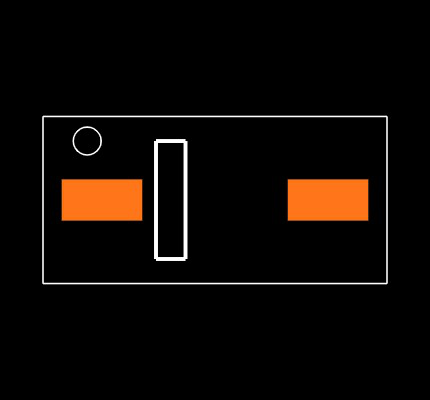

Footprint
No web preview
This Footprint is Available for

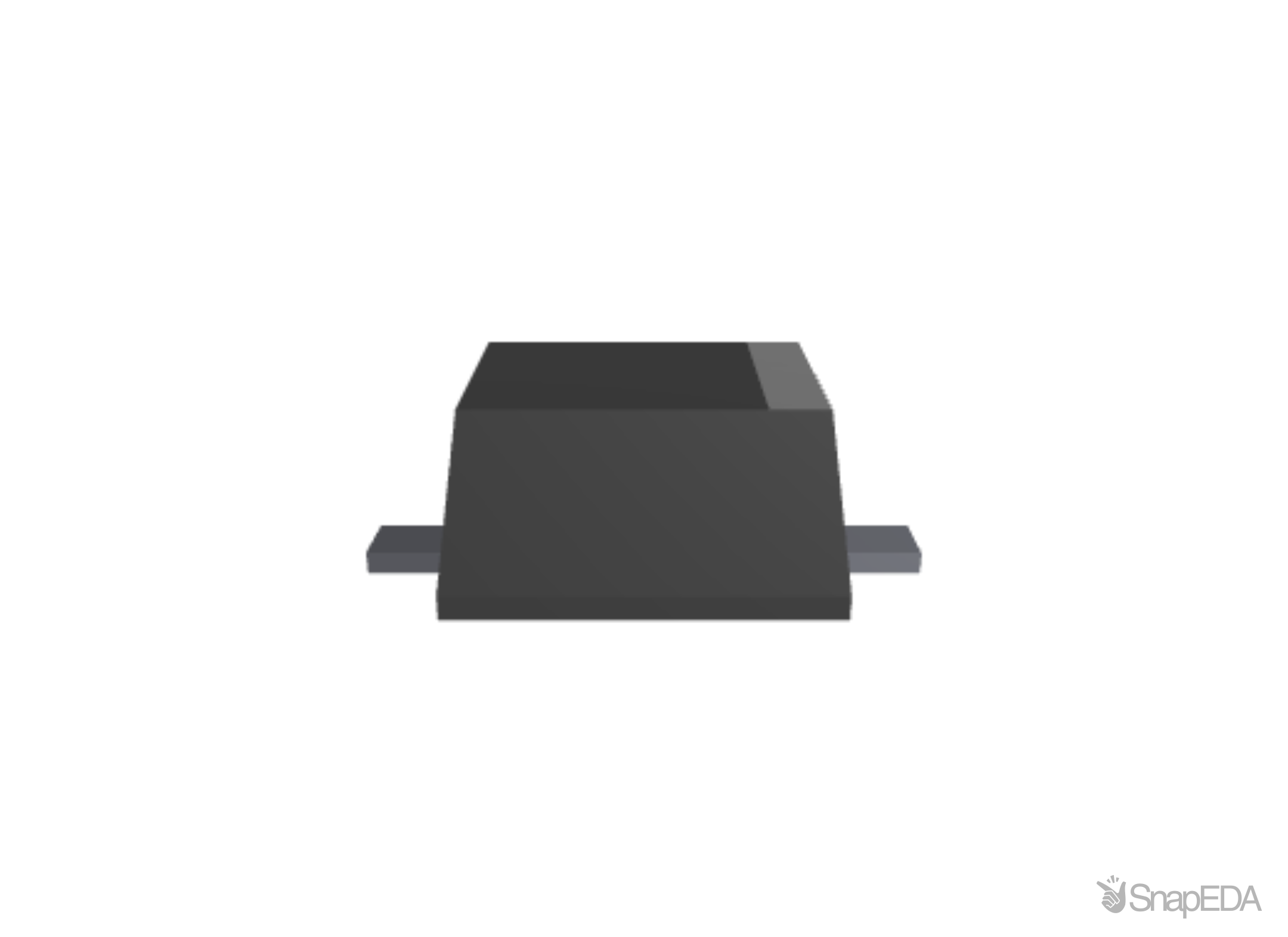

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UDZSTE-1727B
| Part Name | UDZSTE-1727B |
| Manufacturer | Rohm |
| Category | Electronic Components |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Nominal Zener Voltage (V) | 27 (V) |
| Dimensions | 1.7 x 1.25 x 0.7 (mm) |
| Mounting Type | Surface Mount |
| Maximum Zener Impedance | 150 (Ω) |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 100 (nA) |
| Maximum Power Dissipation | 200 mW |
| Zener Type | Voltage Regulator |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Package Type | SOD-323F |
| Zener Voltage Tolerance (V) | 2 (%) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Test Current (A) | 5 (mA) |
Inventory for the UDZSTE-1727B by Rohm from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
25,342
|
|
Visit Site | |
|
★ Featured
|
12,991
|
10,870 x $0.03
|
Visit Site | |
| Verical |
6,036
|
|
Visit Site |
No issues have been reported for the UDZSTE-1727B
If you experienced any issues with the symbol or footprint, please report it.
