UEI15-050-Q48P-C

Name: UEI15-050-Q48P-C
Brand: Murata

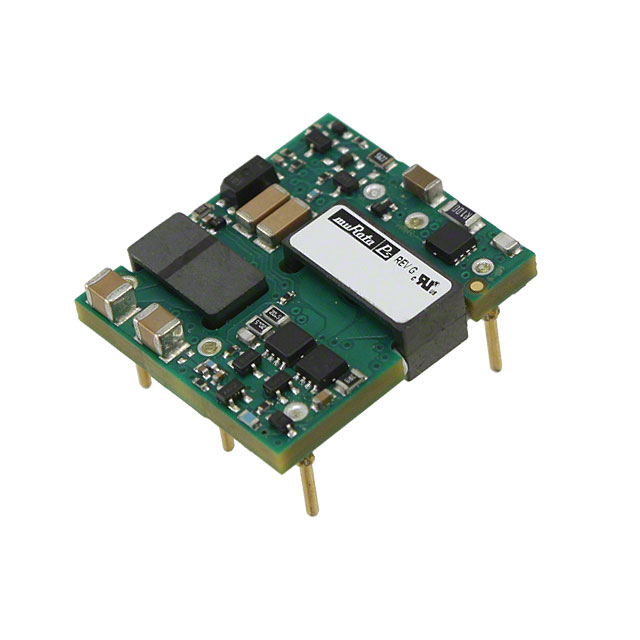

Isolated Board Mount DC/DC Converter, DIP, Fixed, Through Hole, 15 W, 5 V, 3 A

Availability: In Stock

CAD Models: Symbol and Footprint

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the UEI15-050-Q48P-C by Murata and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the UEI15-050-Q48P-C

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the UEI15-050-Q48P-C

Part Name	UEI15-050-Q48P-C
Manufacturer	Murata Power Solutions
RoHS	True
Product Link	https://www.murata.com/en-us/products/productdetail?partno=UEI15-050-Q48P-C
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Load Regulation	±0.06 (%)
Number Of Outputs	1
Output Voltage Adjustment Range (V)	-10 → +10 (%)
Maximum Temperature	+85 (°C)
Output Current (A)	3 (A)
Mounting Type	Through Hole
Efficiency	86 (%)
Series	UEI15
Input Voltage Range (V)	18 → 75 V dc
Depth	0.33 (mm)
Width	24.4 (mm)
Length	27.9 (mm)
Isolation Voltage (V)	2.25 (kV dc)
Minimum Temperature	-40 (°C)
Input Voltage Nominal (V)	48 V dc
Power Rating	15 (W)
Output Voltage (V)	5 (V dc)
