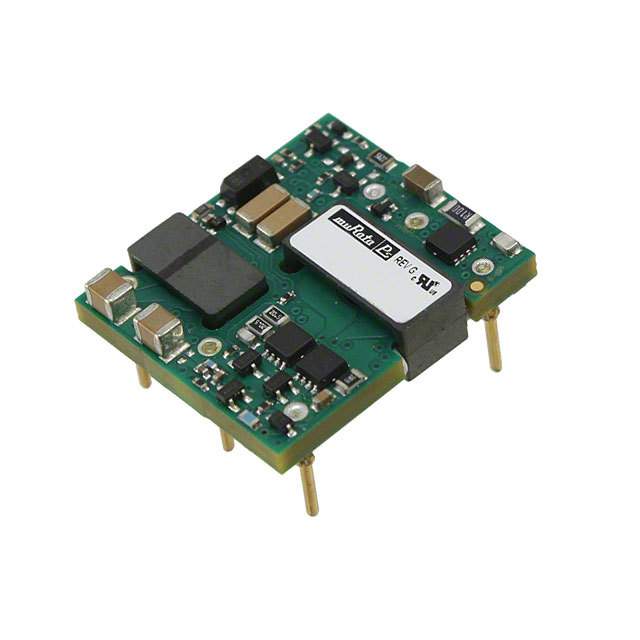

UEI15-120-Q12P-C
Isolated Module DC DC Converter 1 Output 12V 1.3A 9V - 36V Input
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UEI15-120-Q12P-C by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

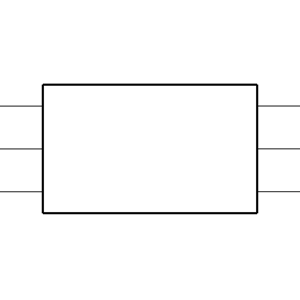

Symbol
No web preview
This Symbol is Available for

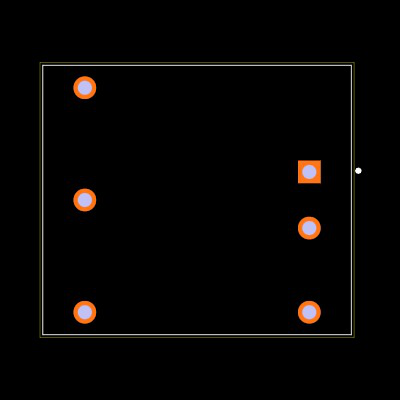

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UEI15-120-Q12P-C
| Part Name | UEI15-120-Q12P-C |
| Manufacturer | Murata Power |
| Category | DC-DC Converters |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=UEI15-120-Q12P-C |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Input Voltage Nominal (V) | 24 V dc |
| Output Current (A) | 1.3 (A) |
| Mounting Type | Through Hole |
| Package | Case C75 |
| Maximum Temperature | +85 (°C) |
| Series | UEI15 |
| Input Voltage Range (V) | 9 → 36 V dc |
| Isolated | Yes |
| Length | 24.4 (mm) |
| Isolation Voltage (V) | 2 (kV dc) |
| Minimum Temperature | -40 (°C) |
| Power Rating | 15.6 (W) |
| Output Voltage (V) | 12 (V dc) |
