UEI15120Q12PC
CONVERTER, DC/DC, 12V, 1.3A; No. of Outputs:1 Output; Output Power Max:15.6W; Output Voltage - Output 1:12V; Output Current - Output 1:1.3A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output Current - Output 3:-; Product Range:UEI15 Series; Input Voltage DC Min:9V; Input Voltage DC Max:36V; DC / DC Converter Output Type:Fixed; DC / DC Converter Type:DIP; DC / DC Converter Mounting:Through Hole; Width:22.86mm; Height:8.51mm; Depth:27.94mm; SVHC:No SVHC (07-Jul-2017); Approval Bodies:CAN, CSA, EN, IEC, UL; Approvals & Standards:CAN, CSA, IEC, UL; Efficiency:84.5%; External Depth:9.1mm; External Length / Height:24.4mm; External Width:27.9mm; Input Voltage:24V; Isolation Voltage:2.25kV; No. of Outputs:1Outputs; Output Ripple Voltage pk-pk:110mV; Power Rating:15.6W; Supply Voltage:24V
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UEI15120Q12PC by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

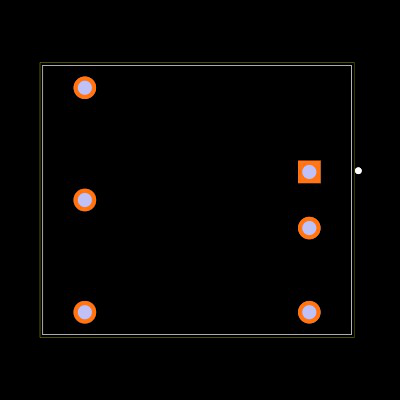

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UEI15120Q12PC
| Part Name | UEI15120Q12PC |
| Manufacturer | Murata |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the UEI15120Q12PC by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
639
|
|
Visit Site | |
|
★ Featured
|
103
|
|
Visit Site |
No issues have been reported for the UEI15120Q12PC
