UGF12JD
25ns, 12A, 600V, Ultra Fast Recovery Rectifier
Availability: In Stock
Package Type: ITO-220AC
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UGF12JD by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

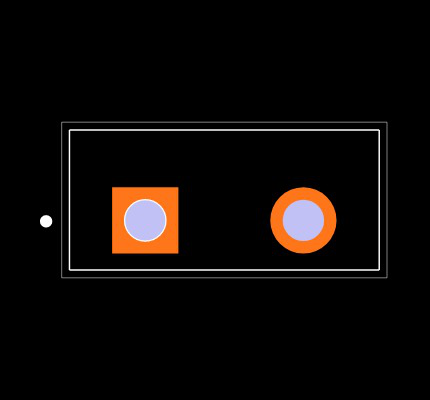

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UGF12JD
| Part Name | UGF12JD |
| Manufacturer | Taiwan Semiconductor |
| Maximum DC Reverse Current (A) | 5e-07 |
| Family | UF Planar |
| Reverse Recovery Time | 2.5e-08 |
| Case Package | ITO-220AC |
| Package | ITO-220AC |
| Peak Forward Surge Current (A) | 100.0 |
| Maximum Operating Junction Temperature | 175.0 |
| Maximum Instantaneous Forward Voltage (V) | 3.1 |
| AEC-Q compliant | True |
| Maximum Average Forward Rectified Current (A) | 12.0 |
| Maximum Repetitive Peak Reverse Voltage (V) | 600.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
