UP2-AH-4-TH
Type A, USB 2.0, 480 Mbps, 30 Vac, 1 A, Right Angle, Through Hole, 30 µin Plating Thickness, Black Insulator, USB Plug
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UP2-AH-4-TH by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

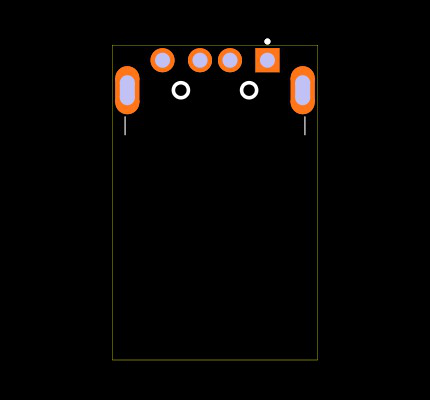

Footprint
No web preview
This Footprint is Available for

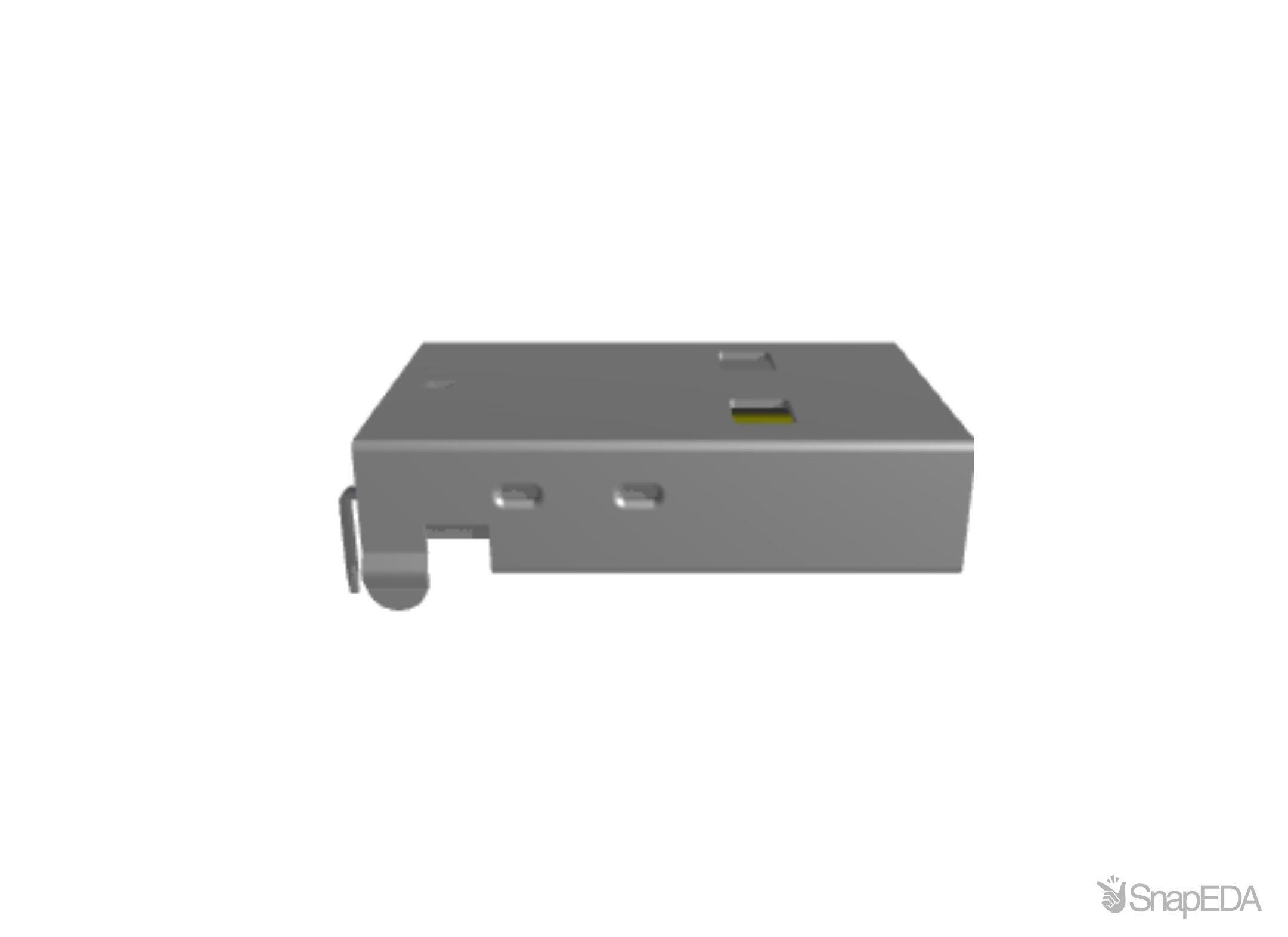

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UP2-AH-4-TH
| Part Name | UP2-AH-4-TH |
| Manufacturer | Same Sky |
| Color Insulator | Black |
| Contact Plating Thickness | 30 µin (min) |
| Orientation | Horizontal |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/up2-ah-4-th |
| Series | UP2-AH-TH |
| USB Type | Type A |
| Voltage Rating (V) | 30 |
| Connector Type | Plug |
| Mounting Style | Through Hole |
| RoHS | True |
| Input Type | Vac |
| Data Transfer Speed | 480 Mbps |
| USB Standard | USB 2.0 |
| Current Rating (A) | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the UP2-AH-4-TH by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
5,760 x $0.50
|
Visit Site |
No issues have been reported for the UP2-AH-4-TH
If you experienced any issues with the symbol or footprint, please report it.
