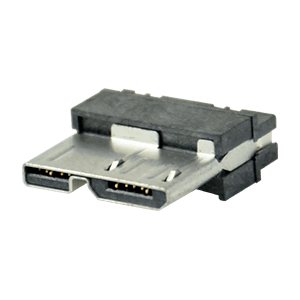

UP3-MIBV-4-CM
Micro B, USB 3.2 Gen 1, 5 Gbps, 30 Vac, 1.8 A, Vertical, Cable Mount, USB Plug Connector
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UP3-MIBV-4-CM by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

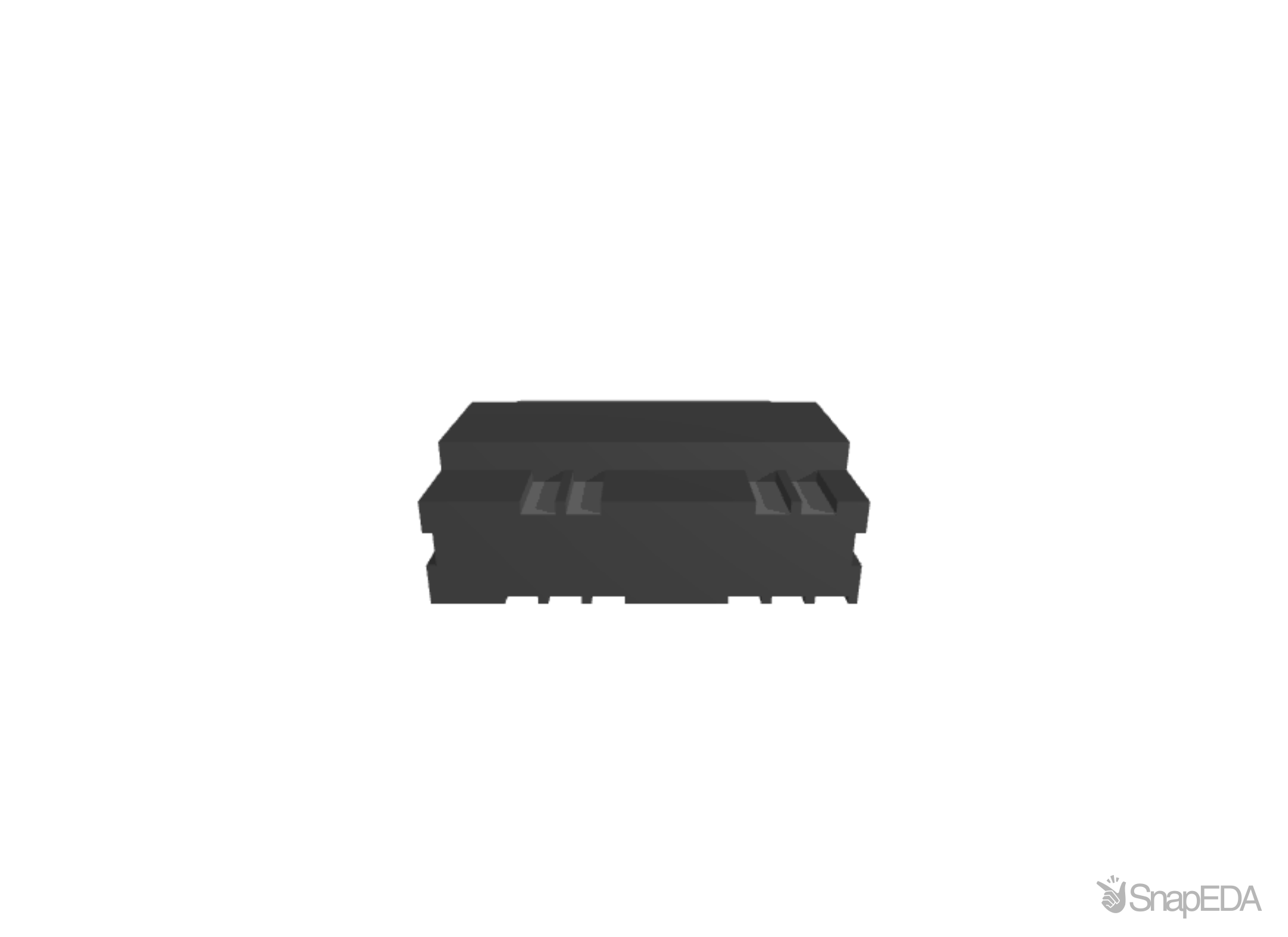

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UP3-MIBV-4-CM
| Part Name | UP3-MIBV-4-CM |
| Manufacturer | Same Sky |
| Color Insulator | Black |
| Contact Plating Thickness | 30 µin (min) |
| Orientation | Vertical |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/up3-mibv-4-cm |
| USB Type | Micro B |
| Voltage Rating (V) | 30 |
| Connector Type | Plug |
| Mounting Style | Cable |
| RoHS | True |
| Input Type | Vac |
| Data Transfer Speed | 5 Gbps |
| USB Standard | USB 3.2 Gen 1 |
| Current Rating (A) | 1.8 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the UP3-MIBV-4-CM by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
|
800 x $3.27
|
Visit Site | |
| Newark |
|
|
Visit Site | |
|
★ Featured
|
|
|
Visit Site |
No issues have been reported for the UP3-MIBV-4-CM
