UPM1A102MPD

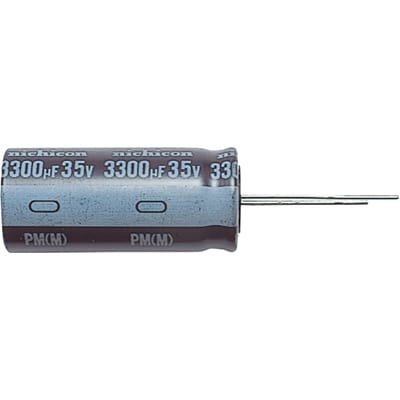

Capacitor Aluminum Electrolytic Cap1000uF 10V 20% Radial 10X20 LS 5mm | Nichicon UPM1A102MPD
Availability: In Stock
Package Type: RADIAL
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UPM1A102MPD by Nichicon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

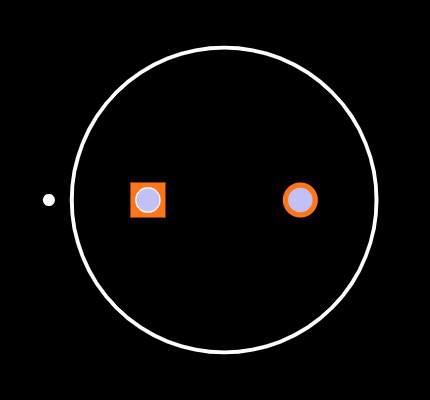

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UPM1A102MPD
| Part Name | UPM1A102MPD |
| Manufacturer | Nichicon |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 10 (mm) |
| Ripple Current (A) | 915 (mA) |
| Dimensions | 10 (Dia.) x 20 (mm) |
| Mounting Type | Radial, Through Hole |
| Series | PM |
| Height | 20 (mm) |
| Capacitance | 1000 (µF) |
| Voltage (V) | 10 (V dc) |
| Leakage Current (A) | 4 μA |
| Lifetime | 5000 (h) |
| Lead Pitch | 5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Technology | Aluminium Electrolytic |
