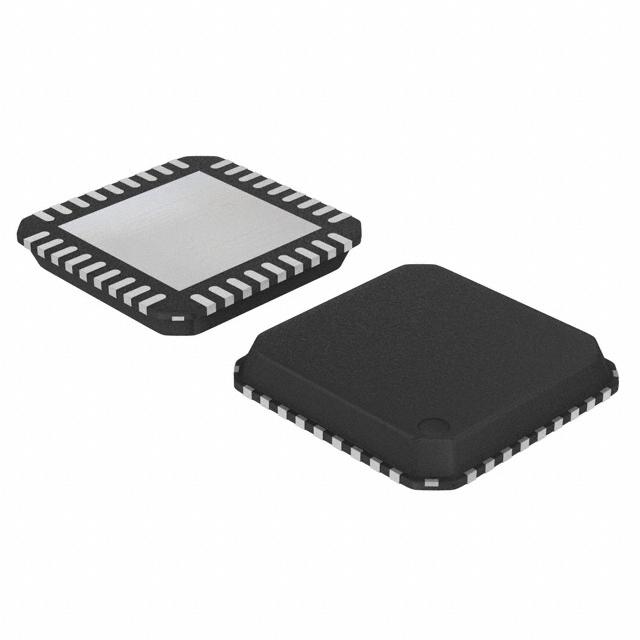

USB2512B-I/M2
USB Hub Controller USB 2.0 USB Interface 36-SQFN (6x6)
Availability: In Stock
Package Type: VFQFN-36
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the USB2512B-I/M2 by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the USB2512B-I/M2
| Part Name | USB2512B-I/M2 |
| Manufacturer | Microchip |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Width | 6.1 (mm) |
| Dimensions | 6 x 6 x 0.9 (mm) |
| Mounting Type | Surface Mount |
| Esd Protection | Yes |
| Power Supply Type | Single |
| Protocols Supported | USB 2.0 |
| Typical Single Supply Voltage (V) | 3 to 3.6 V |
| Height | 0.9 (mm) |
| Number Of Transceivers | 2 |
| Length | 6 (mm) |
| Package Type | SQFN |
| Minimum Operating Temperature | -40 °C |
| Ic Type | Transceiver IC |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 36 |
