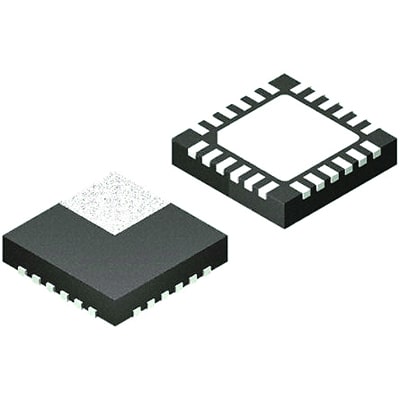

USB3318-CP
USB Transceiver ULPI, 13MHz Clock QFN24 | Microchip Technology Inc. USB3318-CP
Availability: In Stock
Package Type: QFN-24
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the USB3318-CP by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

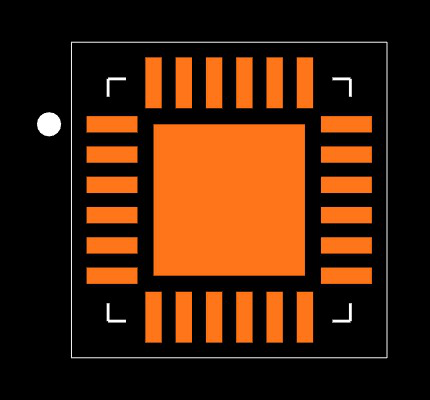

BuildFootprint
No web preview
This Footprint is Available for

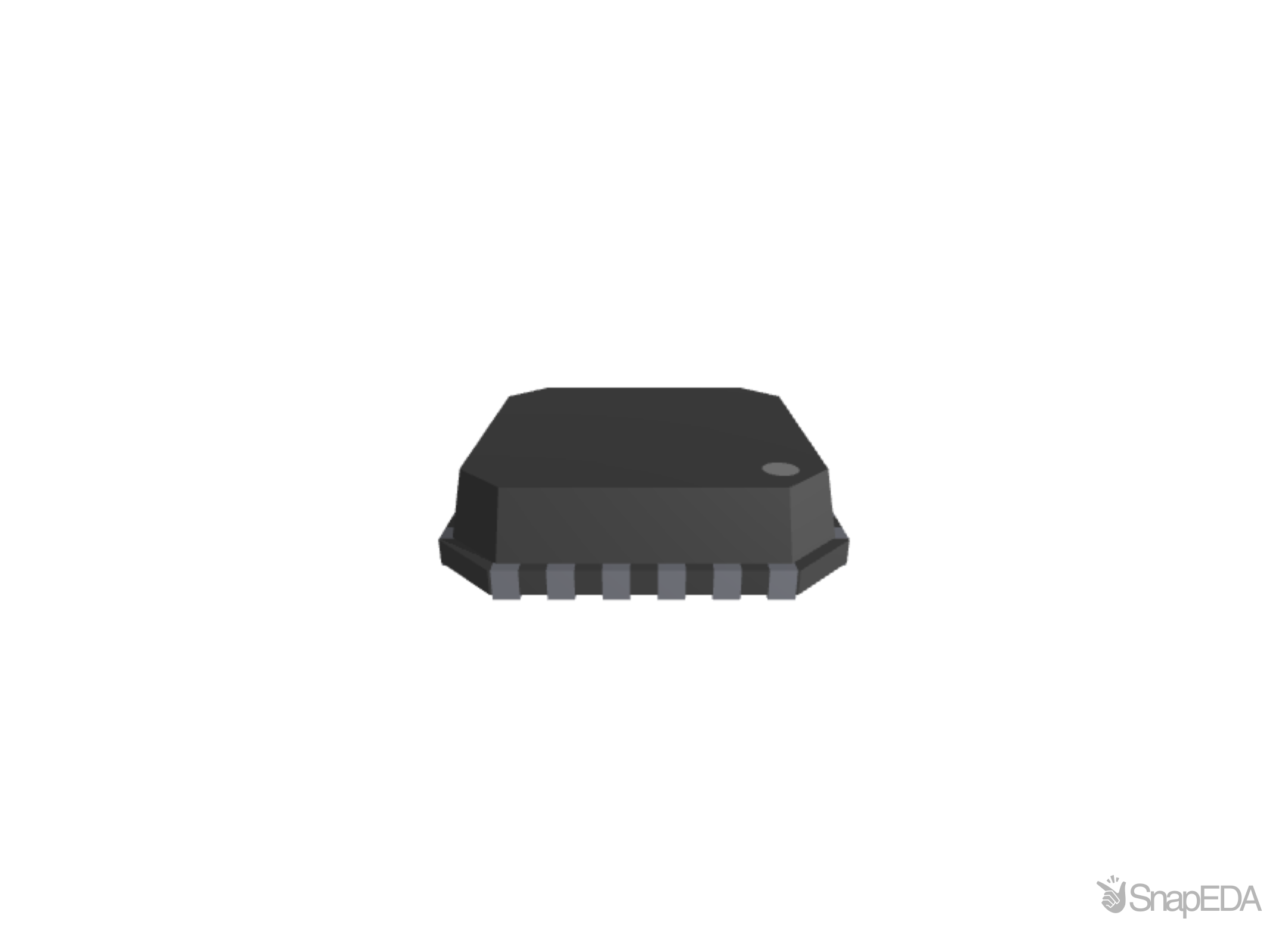

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the USB3318-CP
| Part Name | USB3318-CP |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 4.15 x 4.15 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Esd Protection | Yes |
| Power Supply Type | Single |
| Protocols Supported | USB 2.0 |
| Typical Single Supply Voltage (V) | 1.8 to 3.3 V |
| Height | 0.95 (mm) |
| Number Of Transceivers | 1 |
| Width | 4.15 (mm) |
| Length | 4.15 (mm) |
| Package Type | QFN |
| Minimum Operating Temperature | -40 °C |
| Ic Type | Transceiver IC |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 24 |
Inventory for the USB3318-CP by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
428
|
|
Visit Site | |
| Arrow Electronics |
218
|
|
Visit Site | |
| Verical |
218
|
|
Visit Site |
No issues have been reported for the USB3318-CP
