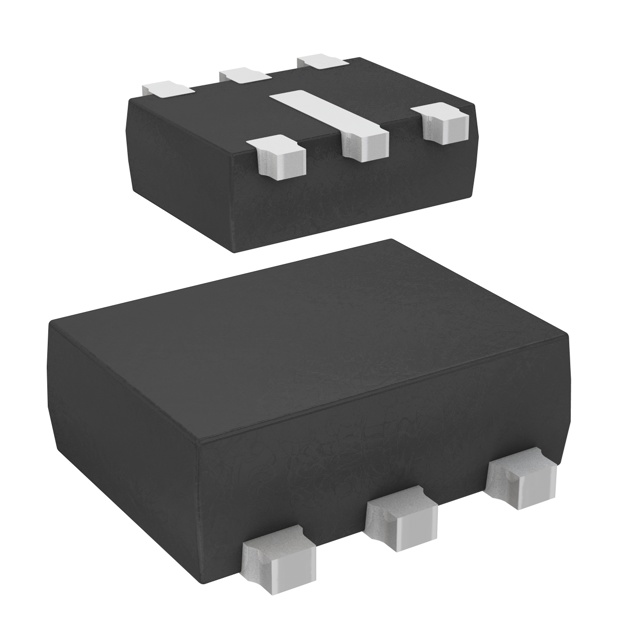

USBLC6-2P6
17V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-666
Availability: In Stock
Package Type: SOT-666
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the USBLC6-2P6 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the USBLC6-2P6
| Part Name | USBLC6-2P6 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 5 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 5 (V) |
| Dimensions | 1.7 x 1.3 x 0.6 (mm) |
| Minimum Breakdown Voltage (V) | 6 (V) |
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Maximum Reverse Leakage Current (A) | 150 (nA) |
| Esd Protection | Yes |
| Height | 0.6 (mm) |
| Width | 1.3 (mm) |
| Length | 1.7 (mm) |
| Package Type | SOT-666 |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 17 (V) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 6 |
| Test Current (A) | 1 (mA) |
Inventory for the USBLC6-2P6 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
127,761
|
|
Visit Site | |
|
★ Featured
|
350,000
|
2,845 x $0.11
|
Visit Site | |
| Arrow Electronics |
117,000
|
6,000 x $0.09
|
Visit Site | |
| Verical |
117,000
|
6,000 x $0.09
|
Visit Site |
No issues have been reported for the USBLC6-2P6
If you experienced any issues with the symbol or footprint, please report it.
