USBLC6-4SC6Y
17V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6
Availability: In Stock
Package Type: SOT-23-6
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the USBLC6-4SC6Y by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for

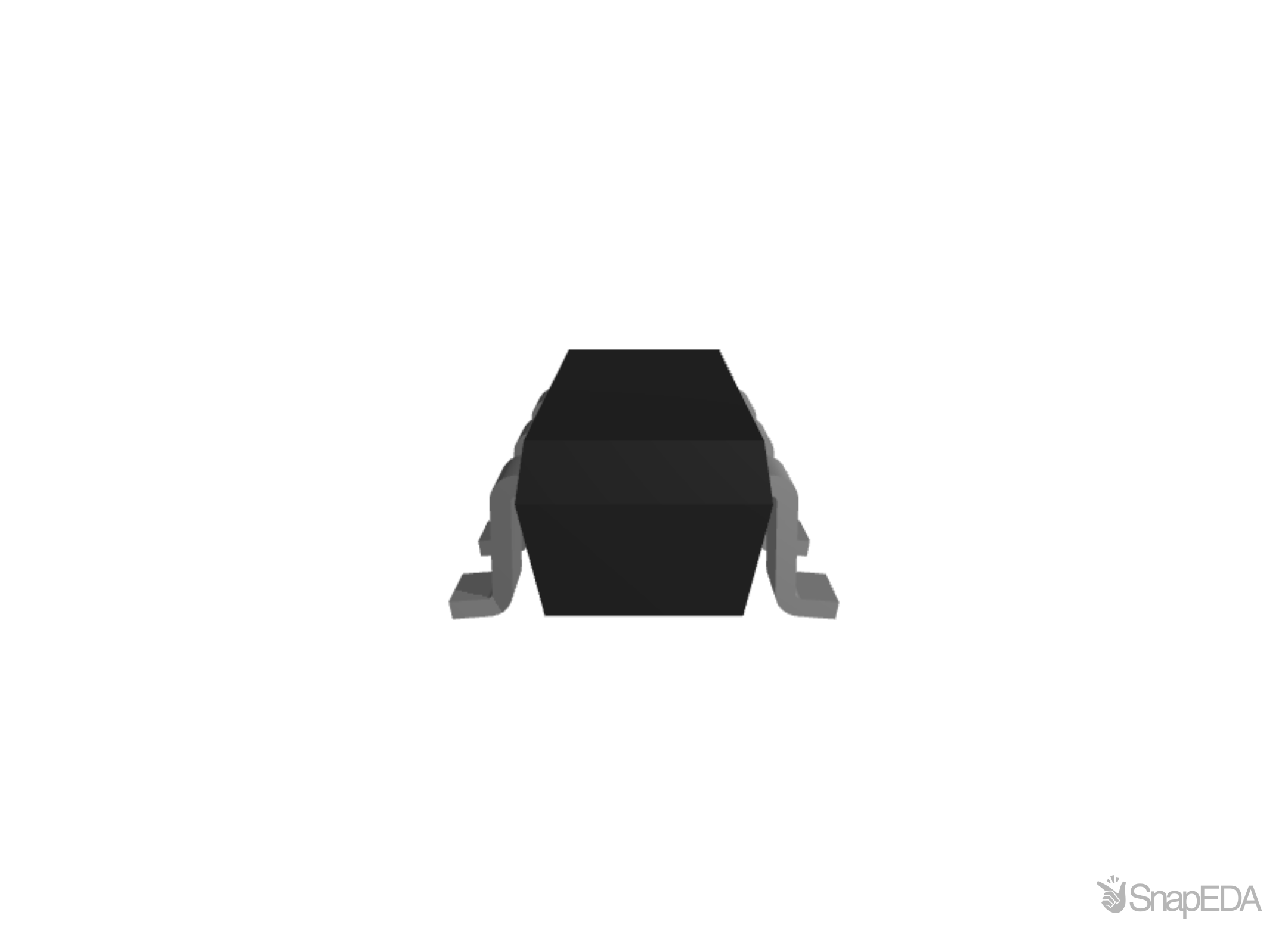

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the USBLC6-4SC6Y
| Part Name | USBLC6-4SC6Y |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 6 |
| Maximum Peak Pulse Current (A) | 5 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 5.25 (V) |
| Capacitance | 330 (pF) |
| Dimensions | 3.05 x 1.75 x 1.3 (mm) |
| Minimum Breakdown Voltage (V) | 6 (V) |
| Esd Protection | Yes |
| Esd Voltage (V) | 25 (kV) |
| Diode Configuration | Array |
| Maximum Clamping Voltage (V) | 17 (V) |
| Width | 1.75 (mm) |
| Length | 3.05 (mm) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Height | 1.3 (mm) |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q101 |
Inventory for the USBLC6-4SC6Y by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
20,304
|
|
Visit Site | |
|
★ Featured
|
59,598
|
3,440 x $0.09
|
Visit Site | |
| Arrow Europe |
24,000
|
3,000 x $0.35
|
Visit Site | |
| Avnet America |
21,000
|
|
Visit Site | |
| Chip One Stop |
4,560
|
5 x $0.32
|
Visit Site | |
| Farnell UK |
148
|
|
Visit Site | |
| Newark |
1,226
|
|
Visit Site | |
| RS UK |
1,800
|
25 x $0.23
|
Visit Site | |
| TME |
114
|
|
Visit Site | |
| Verical |
24,000
|
3,000 x $0.35
|
Visit Site | |
| element14 Singapore |
1,173
|
|
Visit Site |
No issues have been reported for the USBLC6-4SC6Y
If you experienced any issues with the symbol or footprint, please report it.
