UTR-1440K-TT-R
14MM ULTRASONIC 40KHZ
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UTR-1440K-TT-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

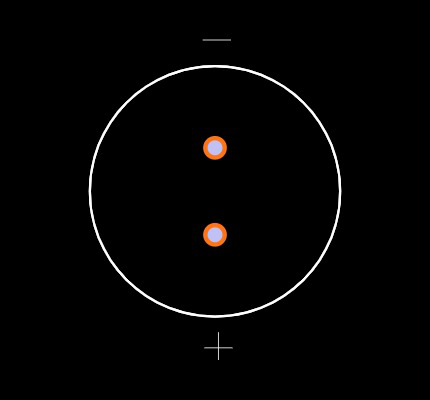

Footprint
No web preview
This Footprint is Available for

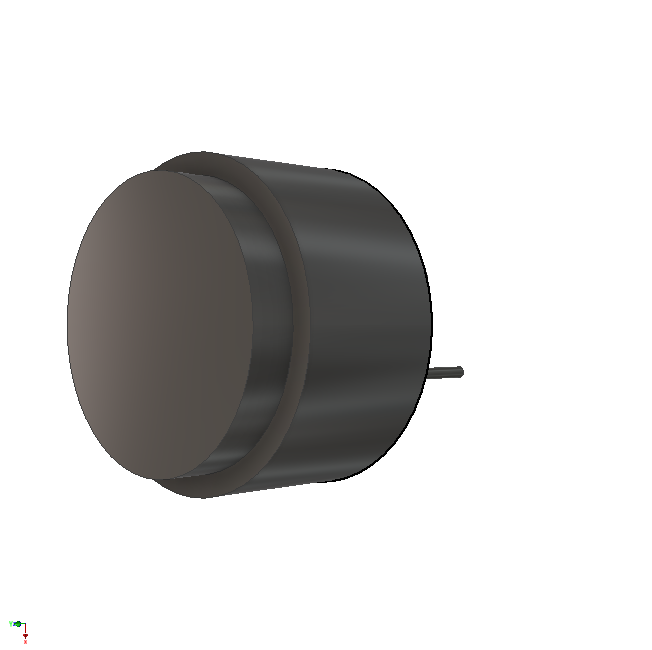

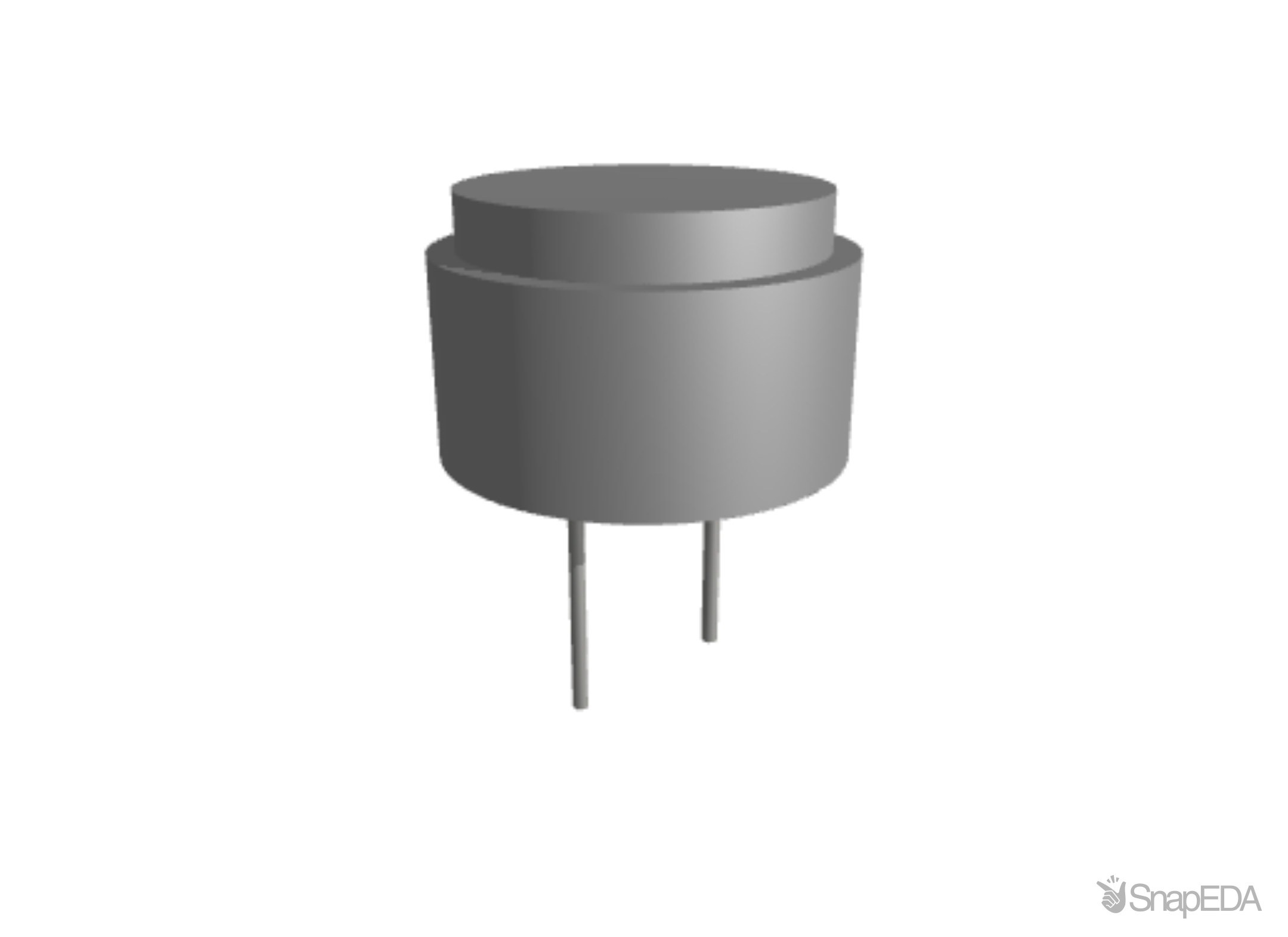

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UTR-1440K-TT-R
| Part Name | UTR-1440K-TT-R |
| Manufacturer | PUI Audio |
| Directivity | 70 |
| Tolerance at degrees | 15 |
| Device Type | Transmiter/Receiver |
| Lead Time | 145 |
| MULT | 100 |
| Status | Active |
| SPQ | 100 |
| Tolerance percentage | 15.0 |
| REACH | No |
| SPU | BOX |
| Tolerance - Mhz | 0.001 |
| Additional Features | pin |
| Exemption | 7C |
| Resonant Frequency - Mhz | 0.04 |
| Country Code | CN |
| Operating Temp. | -40 to 80 |
| Max Input Voltage (V) | 140.0 |
| RoHS | Yes |
| HTS Code | 8531.80.9041 |
| Capacitance | [1.0, 800.0] |
| MOQ | 100 |
| Dimmensions in mm. | 14.4 x 14.4 x 9 |
| Product Link | https://www.puiaudio.com/products/utr-1440k-tt-r/ |
