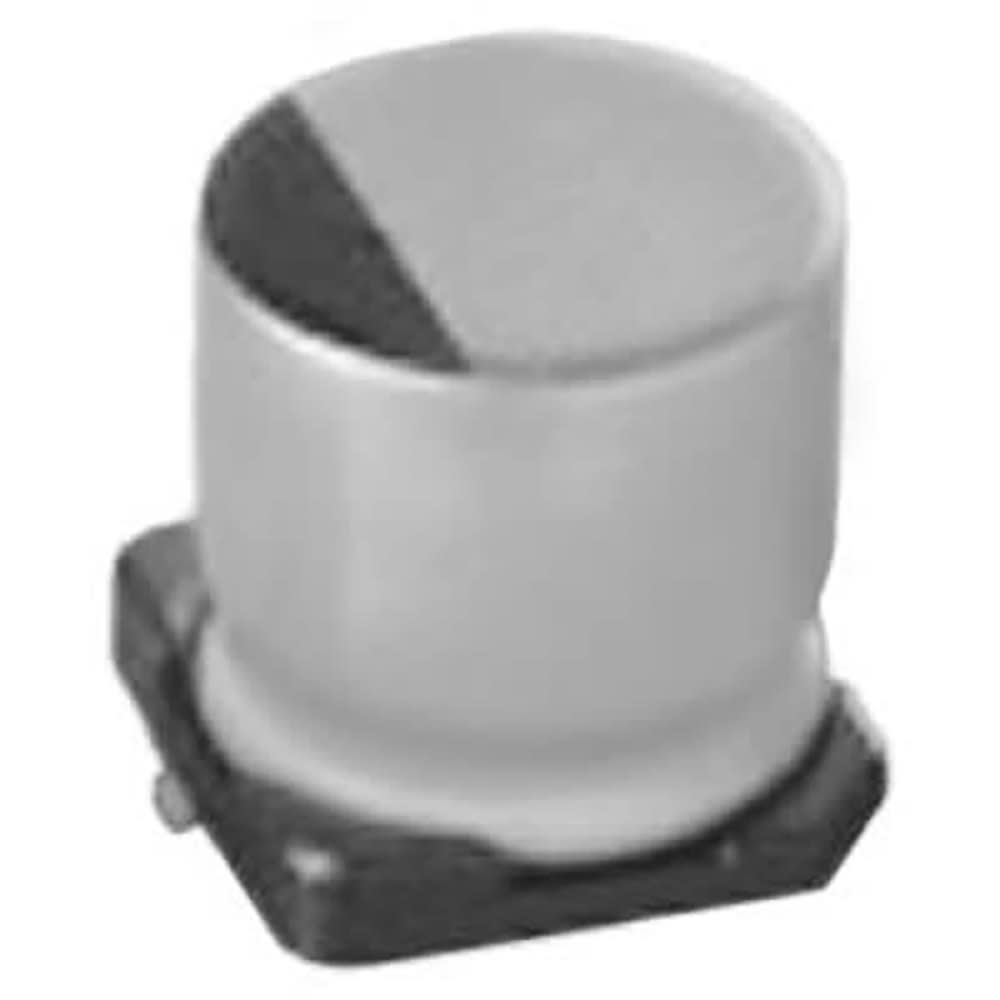

UUD1H100MCL1GS
Aluminum Electrolytic Capacitors - SMD, Low Impediance, 50volts 10uF | Nichicon UUD1H100MCL1GS
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UUD1H100MCL1GS by Nichicon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UUD1H100MCL1GS
| Part Name | UUD1H100MCL1GS |
| Manufacturer | Nichicon |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 6.6 (mm) |
| Ripple Current (A) | 165 (mA) |
| Dimensions | 6.6 (Dia.) x 6.6 x 5.8 (mm) |
| Mounting Type | Surface Mount |
| Series | UD |
| Depth | 6.6 (mm) |
| Dissipation Factor | 0.12 (%) |
| Height | 5.8 (mm) |
| Capacitance | 10 (µF) |
| Length | 6.6 (mm) |
| Voltage (V) | 50 (V dc) |
| Leakage Current (A) | 3 μA |
| Lifetime | 2000 (h) |
| Lead Pitch | 2.2 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Polarised | Polar |
| Technology | Aluminium Electrolytic |
Inventory for the UUD1H100MCL1GS by Nichicon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
13,665
|
|
Visit Site | |
|
★ Featured
|
10,000
|
1,550 x $0.19
|
Visit Site | |
| Arrow Europe |
5,000
|
1,000 x $0.07
|
Visit Site | |
| CoreStaff |
2,000
|
|
Visit Site | |
| Farnell UK |
13,509
|
|
Visit Site | |
| Newark |
13,509
|
|
Visit Site | |
| RS UK |
3,425
|
|
Visit Site | |
| TTI Europe |
86,000
|
1,000 x $0.11
|
Visit Site | |
| Verical |
16,842
|
|
Visit Site | |
| element14 Singapore |
13,509
|
|
Visit Site |
No issues have been reported for the UUD1H100MCL1GS
