UVR1C100MDD

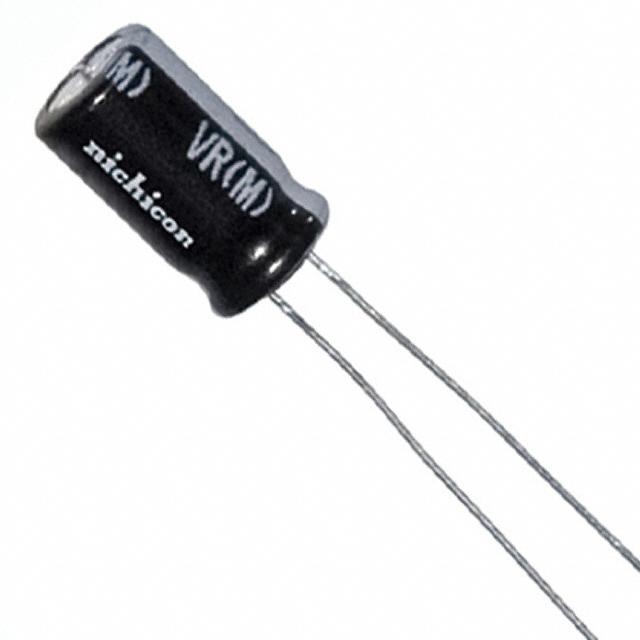

10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - 2000 Hrs @ 85°C
Availability: Out of Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UVR1C100MDD by Nichicon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

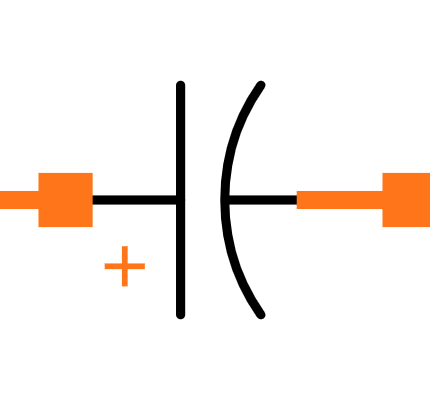

Symbol
No web preview
This Symbol is Available for

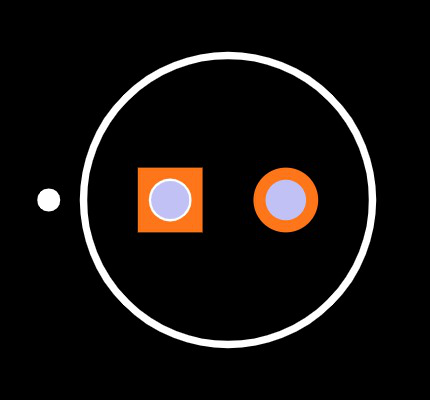

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UVR1C100MDD
| Part Name | UVR1C100MDD |
| Manufacturer | Nichicon |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Priced To Clear | Yes |
| Diameter | 5 (mm) |
| Ripple Current (A) | 50 (mA) |
| Dimensions | 5 x 11 (mm) |
| Mounting Type | Through Hole |
| Series | VR |
| Height | 11 (mm) |
| Capacitance | 10 (µF) |
| Voltage (V) | 16 (V dc) |
| Leakage Current (A) | 4.8 μA |
| Lifetime | 2000 (h) |
| Lead Pitch | 2 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
| Technology | Aluminium Electrolytic |
