UVR1H2R2MDD
Capacitor, Aluminum Electrolytic, Cap 2.2uF 50V 20%, Radial 5X11 LS 5 mm | Nichicon UVR1H2R2MDD
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UVR1H2R2MDD by Nichicon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

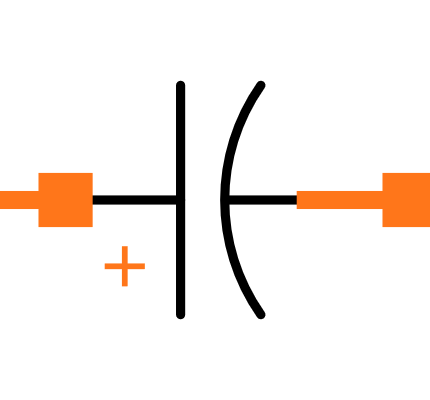

Symbol
No web preview
This Symbol is Available for

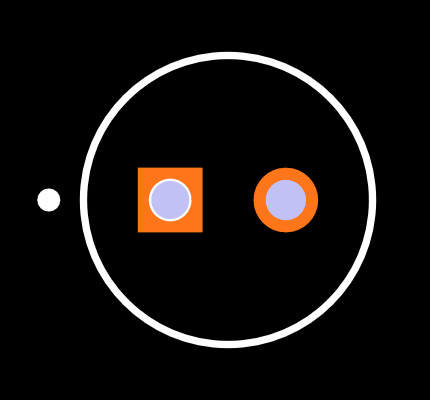

Footprint
No web preview
This Footprint is Available for

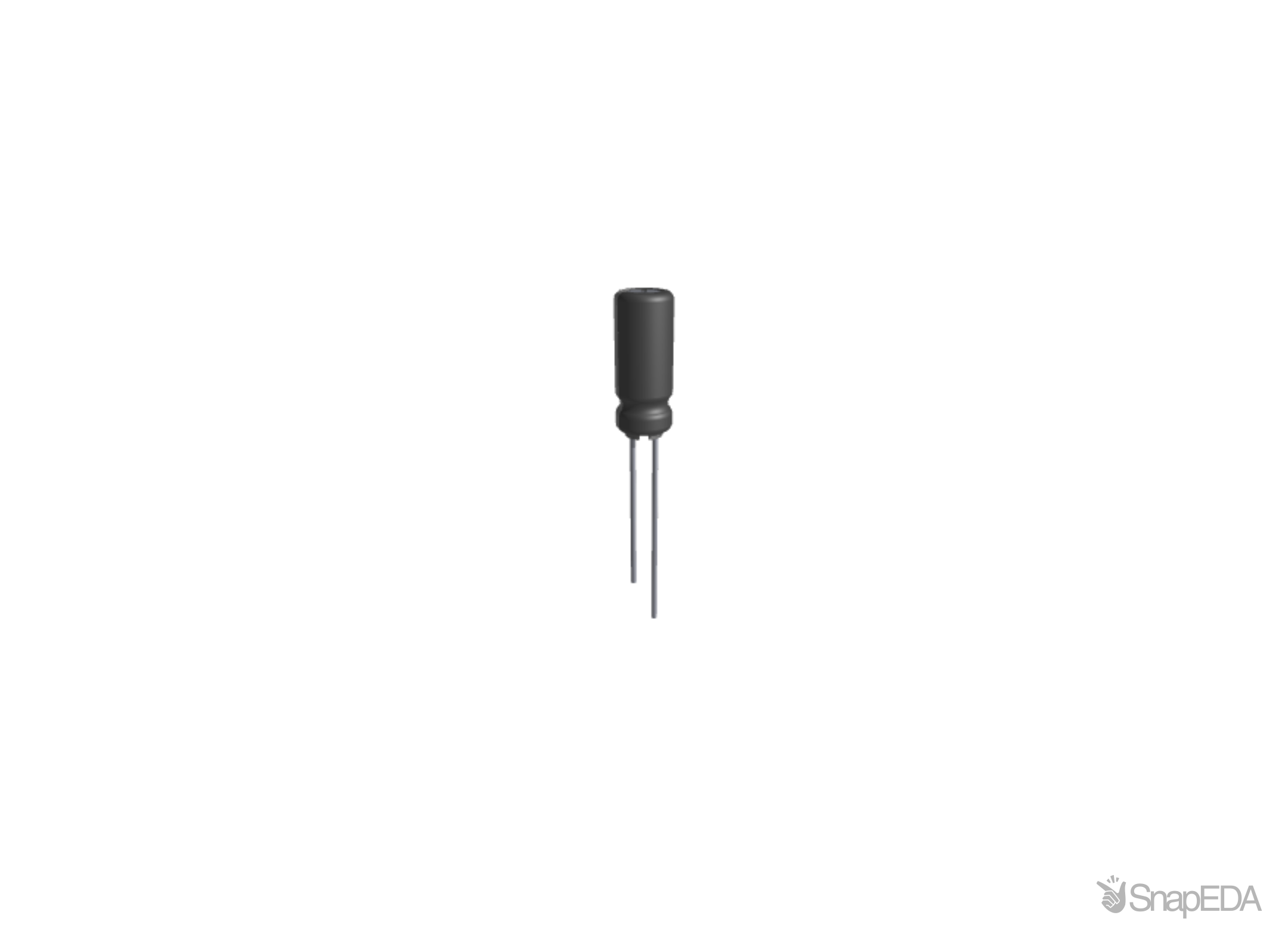

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UVR1H2R2MDD
| Part Name | UVR1H2R2MDD |
| Manufacturer | Nichicon |
| Category | Electronic Components |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 5 (mm) |
| Ripple Current (A) | 28 (mA) |
| Dimensions | 5 x 11 (mm) |
| Mounting Type | Through Hole |
| Series | VR |
| Height | 11 (mm) |
| Capacitance | 2.2 (µF) |
| Voltage (V) | 50 (V dc) |
| Leakage Current (A) | 4 μA |
| Lifetime | 2000 (h) |
| Lead Pitch | 2 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
| Technology | Aluminium Electrolytic |
Inventory for the UVR1H2R2MDD by Nichicon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
3
|
|
Visit Site | |
| RS Americas |
3,326
|
1 x $0.03
|
Visit Site | |
| TTI Americas |
|
200 x $0.05
|
Visit Site |
No issues have been reported for the UVR1H2R2MDD
